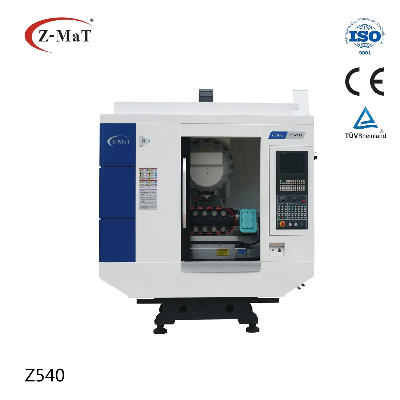

High speed drilling tapping center CNC milling Z-MaT Z540

Z-MaT High speed DRILLING TAPPING CENTER Z540★: Advanced casting design uses precision annealing with traditional aging methods used on each casting. Provides optimal damping of vibration and ensures long-term stability and quality results; ★: Both base and column have wide spacing between ways resulting in a design that is solid as a rock and stable as a mountain; ★: Direct drive spindle provides high efficiency, and low noise - assuring speed and torque during high-speed tapping operations; ★: Gripper arm type tool magazine - for rapid tool changes and solid machining performance; ★: Solid ball screw, bearing structure and high precision linear guideways supports rapid traverse and high speed machining. Also, assures proper orientation of machine during operation; ★: Rear chip conveyor is compact an makes for easy chip removal. Chip flow is direct and easy; Technical ParametersItemSpecificationsUnitZ540TableTable sizemm600x400T slotN/A14x3x100Max.loadKg250TravelX/Y/Z travelmm500/400/300Spindle nose to tablemm155-455Spindle center to columnmm465Guideway typeN/ALM: X/Y/ZSpindleSpindle typeN/ABT30Main servo motorkW5.5/3.7Spindle speedrpm12000Feed&MagazineX/Y/Z axis rapid traversem/min48/48/48Cutting feed rate on X/Y/Zmm/min1-10000ATC capacity/typeN/A16, *21/Gripper armMax.weight of toolKg3Tool change timesecond2AccuracyPositioningmm0.008Repeatabilitymm0.005Dimension&weightPower capacitykVA16Dimension(LxWxH)mm1900x2100x2500Weight(about)Kg2600/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
