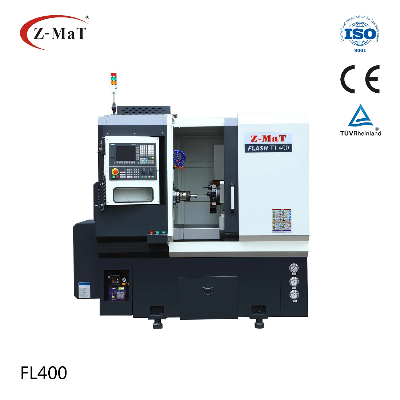

Flat Bed Turning Center CNC Turret Lathe Z-MaT FL400

Z-MaT FLASH FL SERIES★: Cast mono-block, "True Align" flat bed structure;★: Heavy-duty casting base;★: Rigid headstock and spindle;★: Gang type tool holders with multi-livetoolings options;★: Compact design without tailstock★: Linear guideways are protected by stainless steel telescoping guards-provides maximum protection from chips and coolant          and extended machine life;★: Center mounted ballscrews are placed between the bed ways, minimizing side torque and friction;★: Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo;★: Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.Technical ParametersItemSpecificationsUnitFL400CapacityChuck sizeInch8Max. swing dia. Over bedmm400Max. length of workpiecemm320Max. swing dia. Over slidemm180SpindleSpindle boremm62Max. bar capacitymm52Spindle noseN/AA2-6Spindle speedrpm2000Main motor powerkW7.5/5.5AxisX axis travelmm380Z axis travelmm320X/Z rapid traversem/min20/20Turret&livetoolingNo. of tool stationsNos6-8Tool shank sizemm20x20Livetooling size(option)N/AER25Max.speed of live tooling(option)rpm3000StructureGuideway typeN/ALMOverall dimension(LxWxH)N/A1950x1250x1620Weight(about)mm2200/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
