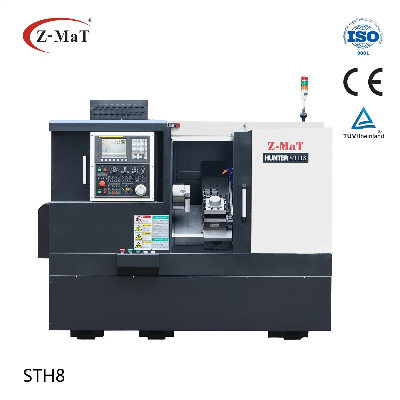

Mini CNC lathe slant bed turning machine Z-MaT STH8

Z-MaT STH TURNING SERIES★: Cast mono-block, "True Align" slant bed structure;★: Heavy-duty casting base and wider bed width;★: Center mounted ballscrew;★: 4-Station toolpost/8-Station turret;★: Linear guideways are protected by stainless steel telescoping guards-provides maximum protection from chips and coolant and extended machine life;★: Center mounted ballscrews are placed between the bed ways, minimizing side torque and friction;★: Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo;★: Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.Technical ParametersItemSpecificationsUnitSTH8CapacityChuck sizeInch8Max. swing dia. Over bedmm350Max. length of workpiecemm400Max. swing dia. Over slidemm200SpindleSpindle boremm62Max. bar capacitymm52Spindle noseN/AA2-6Spindle speedrpm2000, *3500Main motor powerkW7.5/5.5AxisX axis travelmm280Z axis travelmm400X/Z rapid traversem/min8/12ToolpostToolpost typeN/A4-Station toolpostNo. of tool stationsNos4Tool shank sizemm25x25TailstockType of tailstockN/AHydraulicTailstock quillN/AMT4Quill travelmm100Travel of tailstock mm400OthersPower capacityKVA8Overall dimension(LxWxH)mm2150x1450x1800Weight(about)Kg2400/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
