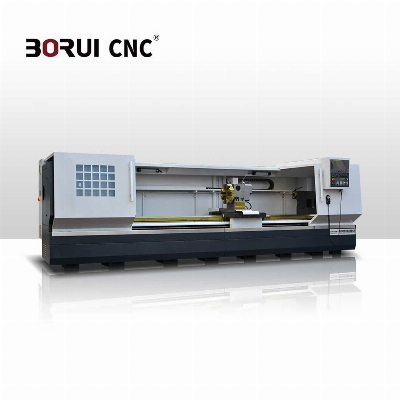

Cwk6180 Heavy Duty CNC Lathe Machine Turning Lathe Machining

  Cwk6180 Heavy Duty CNC Lathe Machine Turning Lathe MachiningProduct DescriptionThe machine is suitable to process the middle and large size work piece in steel , cast iron ,non-ferrous metal material . With the feature of big power and high rigidity , this machine is applied to heavy-cut the inner circle ,ex-circle , end surface and thread in both metric and English system , and could drill and bore the holes . * Higher stability one-piece machine bed* 3-gear spindle speed step-less in gear* Higher rigidity pedestal* Wider layer board* Integrated automatic lubrication system Product ParametersITEMSUNITCK6163CK6180 Capacity Swing over bed mm Φ630 Φ800   Swing over cross slide mm Φ350 Φ550   Distance between centers mm 1000/1500/2000/3000   Width of bed way mm 550/600   Max. load capacity T 3/5 Spindle Spindle bore mm Φ104/Φ130   Spindle bore taper - MetricΦ120, MT#5 MetricΦ140, MT#6   Spindle speed steps - Manual 3 steps Manual 3 steps HYD. 4 steps   Spindle speed range rpm 10-1000 17-1000   Chuck size mm Φ315   Chuck type - 3-jaw manual Turret Turret type - NC turret 4 position   Tool shank size mm 32x32 Carriage X axis travel mm 320 420   Z axis travel mm 850/1350/1850/2850   X axis rapid traverse speed mm/min 4000   Z axis rapid traverse speed mm/min 4000 Tailstock Tailstock quill diameter mm Φ104   Tailstock quill taper - MT#5   Tailstock quill travel mm 250 Motors Main spindle motor kW 11   Coolant pump motor kW 0.125 Accuracy Positioning accuracy mm 0.020   Repositioning accuracy mm 0.010 Dimensions Width x Height mm 1690x1740   Length mm 3390/3890/4390/5390 Weight Net weight T 4.7/5.1/5.5 Detailed PhotosPackaging & ShippingPacking shippingFor machine: usually by sea;  For documents: by international express, eg. DHL,TNT or EMS.For packing :Free fumigation plywood packaging steel baseour service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can    help you to work it  out.8. Always be honest, never lie to customer, and never declare anything     we don't haveCompany ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )  We want to know:1.What's your Industrial Voltage? 2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!     3.If need CIF Price, please kindly tell us the port of destination.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
