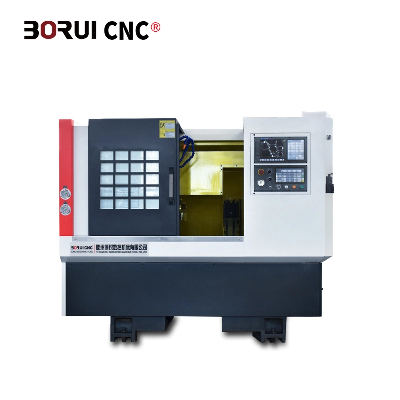

High Precision Lathe Machine Metal Lathe Tool Machine CNC Lathe Machine Tck6340

TCK6340 Lathe Machines Metal Automatic CNC Lathe Machine Lathe ToolsProduct DescriptionThis machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level 7.CNC Lathe Features1.45 degrees slant bed CNC lathe2.Higher accuracy Taiwan linear guideways3.Chip conveying capacity is large and convenient, customer could choose  chip conveying in the right or in the back4. Spindle unit has two types, the heavy cutting type and the high speed type.The first one is suitable for bearing and gear processing. The second type is suitable for the high speed and high precision processing.Customers could choose any type of them         5. Screw pre-stretching structure6. Gang type tool standard7. Optional turretProduct main technical Specifications:      SpecificationsunitTCK6332TCK6336(S)TCK6340TCK6350Max. swing over bedmmΦ360Φ390Φ400Φ520Swing over cross slidemmΦ120Φ130Φ140Φ220Max. processing lengthmm250200(400)300410(Gang type tool)/330( turret)X/Z axis travelmm300/250400/300/(500)380/350500/500Spindle unitmmΦ140Φ140/Φ170Φ170Φ200Spindle nose A2-5A2-5A2-5A2-6/A2-8Spindle boremmΦ48Φ48/Φ56Φ56Φ66Bar capacitymmΦ40Φ40/Φ45Φ45Φ55Max. spindle speedrpm40004000/350035003000Chuck sizein66/86/810Spindle motorkW3.73.7/5.55.57.5/11X/Z axis repeatabilitymm±0.003±0.003±0.003±0.003X/Z axis feed motor torqueN.m6/66/66/67.5/7.5X/Z Rapid traversem/min18/15(18/18)18/15(18/18)18/1818/18Tool post type Gang type tool,Optional turretGang type tool,Optional turret Gang type tool,Optional turretGang type tool,Optional turretCutting tool shape sizemm20×2020×2020×2025×25Guide form 45º45º45º45ºTotal power capacitykVA89/119/1114/18Machine dimension(L×W×H)mm1950×1430×17802200(2390)×1530×17802300×1500×17502500×1620×1890Heavy weight (about)kg18002200(2500)25002900   Standard Accessories:      System: GSK                                                                                                                                               Servo spindle motor                                                                                                                              Stepless speed changer                                                                                                                                                              Gang type tool post                                                                                                                                                 Hydraulic chuck                                                                                                                                                                                             Linear rails                                                                                                                                                                     Lighting system                                                                                                                                                                                               Cooling system                                                                                                                                                           Automatic lubrication system                                                        Optional Accessories                                                           KND ,Siemens ,Fanuc etc     Electric 6-station / 8-station /Gang type 4-station     Spring chuck ,Hydraulic chuck ,pneumatic chuck      Automatic Bar feeder     Automatic chip conveyor Details DisplayCompany ProfilePacking shippingFor machine: usually by sea;  For documents: by international express, eg. DHL,TNT or EMS.For packing :Free fumigation plywood packaging steel baseour service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can    help you to work it  out.8. Always be honest, never lie to customer, and never declare anything     we don't haveSince 1996,20 years' history for machine tool manufacturing10 years' history for exportTotal 2 manufacturing bases in chinaSino-germany technology cooperationProduction of 8 categories, more than 130 kinds of productsSet up design&research center at TAIWAN Exported to total 48 countries in the world covered most areasOne-stop shopping for nearly all other types' machine toolsFAQ1)Q: Which trade term I can choose?A: You can choose FO
