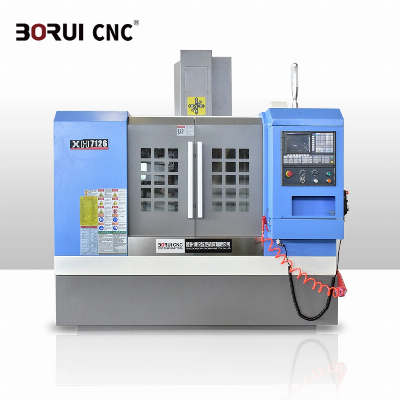

XH7124 New economical high quality universal 3-axis vertical CNC milling machineProduct Description The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.The main specification : Table size1000X240mmMax. table load300kgT slot qty-width*distance3-14x75spindle speed8000r p m spindle nose to table surface90-470mm Spindle center to Column surface360mmSpindle taperBT40Main motor power2.2/3.7kw (servo)X axis travel450mm Y axis travel380mm Z axis travel400mm X/Y/Z axis rapid feed 15/15/15m/min Positioning accuracy±0.01mmRepeatabeility accuracy±0.005mmNet Weight2400 kg Overall Dimension1900X1620X2000The main machine tool partsSerial numberNamemodelOriginQuantity1Spindle unitBT40Taiwan posn12Pressed cylinder Taiwan Haocheng13ATC12Taiwan okada14X Ball Screws Taiwan Hiwin15y Ball Screws Taiwan Hiwin16Z Ball Screws Taiwan Hiwin17guideX, Y,Z all is linear way Taiwan Hiwin38Cooling the pumpPMY-25-5china19Lubrication systemSingle wire dampingTaiwan Hurun110Pneumatic system Taiwan Airtac1Standard configuration: 1.The CNC system: KND2000M2.The knife: The famous Taiwan bamboo hat knife.3.The unclamping cylinder: Taiwan Shangpin4.The weight: Wuxi Xieqing nitrogen balance5.The high quality castings: Resin sand casting6.The spindle: Taiwan famous high speed spindle7.The screw: HIWIN8.The bearing: Japan NTN9.The Internal protection: Total protectionSelect the configuration:1.M70B/M70A Mitsubishi FANUC 0i mate MD2.The CNC dividing head3.The taiwan famous brand manipulator knife storehouse4.NC rotary table5.The chip cleaner6.The fourth axisCNC milling machine features:1.The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts 2.Machine base, column, spindle box, table and other basic parts, all adopt high-intensity Lost Foam molding technology, the internal microstructure stability, to ensure that the basic pieces has high stability. Casting structure through the machine dynamics analysis and finite element analysis, geometric structure to make it more reasonable, and the appropriate combination of ribs to ensure the high stiffness of the basic parts. Wide machine bed base, full load support design, to ensure that the heavy load when processing capacity.3. high-speed high-rigidity spindle unit combined with the servo spindle motor; X / Y / Z using high-torque servo motor.4.X / Y / Z adopt Taiwan's high-precision and high-strength ball screw with a pair of special ball screw bearings and high precision imported locking.Details DisplayCompany ProfilePacking shippingFor machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS.For packing :Free fumigation plywood packaging steel baseour service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can help you to work it out.8. Always be honest, never lie to customer, and never declare anything we don't haveCompany InformationSince 1996,20 years' history for machine tool manufacturing10 years' history for exportTotal 2 manufacturing bases in chinaSino-germany technology cooperationProduction of 8 categories, more than 130 kinds of productsSet up design&research center at TAIWAN Exported to total 48 countries in the world covered most areasOne-stop shopping for nearly all other types' machine toolsFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our f
