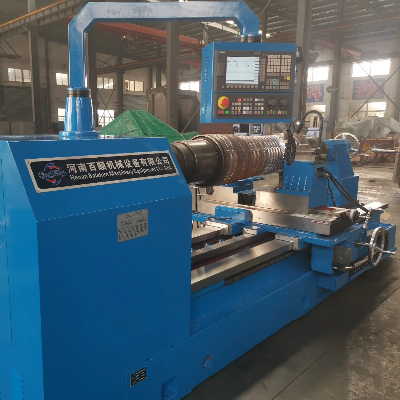

Product Description1Technical requirement1.1The type WXK-500C/WXK-500K CNC Roll Notching and Marking Machine with high robotization , precision, efficiency and safe operation can meet the needs of milling,dead slots and lettering at once installation.1.2Structure of the lathe bed is three parallel tracks. width of the lathe bed is over 900mm and its saddle is over 800mm.Because of the special structure, the machine have a excellent rigidity and aseismatic capacity. It can milling the tungsten carbide roller ring and HSS with the hardness from 80 to 86 HRA.1.3The big carriage of machine tool vertical mobile is ball screw,system control and with retaining mechanism.To ensure that the processing high hardness roll or big cutting work it when do not appear for center migration caused waste slots.1.4Milling body of cutter and milling body of swinging are relative installation and both of not interference, these are only at once disassembling and assembly parts can realization transformation of milling and lettering function,also not need electrical changer-over.1.5Quencher is used for machining lathe bed track which can improve the abrasion capacity. Horizontal feed-cutter is use trundle linear guide,it can be reducing frictional drag and improving mobile precision1.6Machine tool with institutions of presetting cutter ,vertical movement and horizontal movement of cutter tool on big carriage equipped with grating digital readout. To ensure that the accuracy of advancing and retreating cutter and change slots displacement. eliminate measure by eyes caused by break cutter.1.7Control is use siemens system 802DSL,LCD full-color display and five shaft servo control.1.8The machine is use Siemens servo system,five control shaft of machine are independent motor and drive, not allow shared drive.1.9We guarantee that the cross rib slot of processing can up to GB1499-98/BS4449 standardProduct Parameters CNC Roll Notching Machine Max diameter of the roll 500mmMin diameter of the roll50mmMax length of the roll2500mmMax length of processing roller surface1800mmProcessing rib roller sizeΦ6~Φ50Carving head electric spindle rated power2.2KwElectric spindle speed0~24000r/minMotor of cooling pumpAB25-90WControl systemSiemens808DRated torque of servo motorX axis8.34 N.mY axis11.5 N.mZ axis8.34 N.mA axis18.6 N.mMin moving amount of control shaft0.001mm,0.001°Amount of vertical movement2000mmWorking power supply380V,50HZ;15KWWeight of machine6500kgCNC control systemSiemens808DDetailed PhotosWorkshop DisplayProcessed Workpiece Display/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
