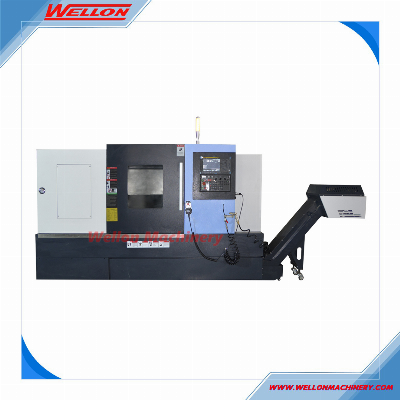

Products Description:Slant bed CNC turning machine TCK550GP CNC lathe machinePerformence Features:This series of machine tools uses a 30° inclined overall bed, and the bed material is HT300. Using resin sand art casting, internalThe rib layout is reasonable. The guide rail adopts imported linear roller guide, which has improved feed accuracy, low friction resistance, good rigidity, andVibration and deformation resistance is high, allowing users to obtain higher accretion accuracy and faster moving speed, and obtain higherProduction efficiency.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication30 degree One-piece casting slant bed.Technical parameter: ItemUnitTCK550GPMax.swing over bedmm570Max.swing over cross slidemm280Max turning diametermm500Max.turning lengthmm750Spindle nosemmA2-6Chuck size 10"Spindle motor powerkw11/15Max.spindle speedrpm3500Spindle boremm66Max Bar diameter through holemm52X axis limit Travelmm270Z axis limit Travelmm800X/Z axis motor torqueN/m10/10Sland bed angle 30°Height of turret centermm100X/Z axis leadscrewmm32/40X/Z axis linear guideway mm45/45X/Z axis positioning accuracy mm0.008X/Z axis repeat accuracy mm0.005Tailstock quill diametermm75Tailstock quill travelmm120Tailstock quill taper MT5Tailstock travelmm500Machine dimension (mm)mm3350x1700x1750Weightkg4300Standard accessories8" Hollow hydraulic 3 jaw chuck from TaiwanHydraulic tail stockservo turretBall leadscrew PMIBearings for X,Z : FAG-P4Drive servo motors from FanucSpindle motor CTBFanuc 0i TF Control systemMeasuring armMPGChain type chip conveyorCutting Cooling systemWork lampCentral auto-lubricating systemTri-color warning lampHeat exchanger in cabinetFull closed guardTools and tool boxLeveling bolts and blocksSpindle bearing by NSK Optional accessoriesSpindle bearings from NSKMeasuring armDriven tools axialDriven tools radialTailstock hydraulic moving (R axis)Tailstock with leadscrew and linear guideway (R axis)Turret with Y axisX,Z axis linear guideway Roller type Company Information:Contact Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
