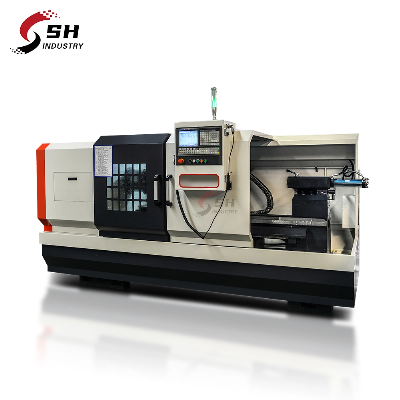

Ck6160V One Piece Casting High Performance Metal Cutting CNC Lathe Machines

CK6160V One Piece Casting High Performance CNC Lathe Machines  Product DescriptionCNC Lathe Use:Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.CNC Lathe Features: A high strength, widening the carriage, suitable for heavy cutting Four position electric turret Frequency conversion stepless speed regulation Standard configuration: manual chuck Optional configuration : hydraulic chuckTechnical Specifications:SPECIFICATIONSUnitsCK6160VSwing over bedmm600Swing over cross slidemm395Distance between centersmm1000/1500/2000Spindle boremm82 (Optional 130)Spindle bore taper-Metric φ90/1:20Spindle nose type-A2-8(A2-11)Spindle speed steps-SteplessSpindle speed rangerpm1800 (Optional 800)Turret/tool post-Electric 4 positionTool sizemm25 x 25X axis travelmm300Z axis travelmm1000/1500/2000X axis rapid traversemm/min6000Z axis rapid traversemm/min10000Tailstock quill diametermm75Tailstock quill taper-MT5Tailstock quill travelmm200Main spindle motorkw7.5/11Coolant pump motorkw0.125Weight for 1000kg3200Weight for 1500kg3500Weight for 2000kg4000Dimension for 1000mm2950x1800x1900Dimension for 1500mm3650x1800x1900Dimension for 2000mm4250x1800x1900Detailed Photos           Company Profile Certifications        FAQ1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
