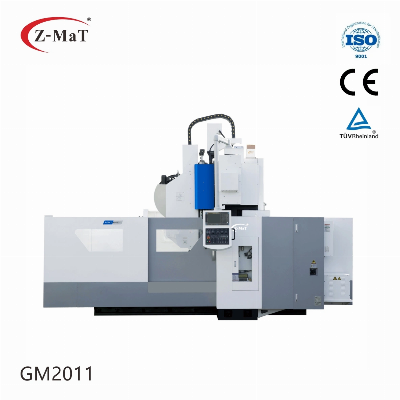

Double column Heavy-duty Gantry milling machine GM2011

Z-MaT GM2011 Gantry VERTICAL MACHINING CENTER★: Precision and heavy-duty Roller linear guideways provide high speed rapids and heavy-cut;★: Heavy-duty high quality castings provide a solid structure and rigid foundation;★: Two columns and beam are one-piece castings, more rididity during machining;★: Direct drive spindle efficiently seperates the heat generated from the motor, which reduces deformation;★: High-performance magazine achieves quick tool change to minimize non-cutting time;★: Full enclosed guard cover and advanced sheet metal design;★: Fanuc 0i MF Plus/Siemens 828D/Mitsubishi M80A control systems;TECHNICAL PARAMETERSItemSpecificationsUnitGM2011TableTable sizemm2000x900T slotN/A22x7x125Max.loadKg2000TravelX/Y/Z travelmm2000/1200/800Spindle nose to tablemm120-920Guideway typeN/ALM: X/Y/Z(roller)SpindleSpindle typeN/ABT50-155Main servo motorkW18.5/15.0Spindle speedrpm8000, *6000Feed&MagazineX/Y/Z axis rapid traversem/min20/20/20Cutting feed rate on X/Y/Zmm/min1-10000ATC capacity/typeN/A24/ArmMax.weight of toolKg18AccuracyPositioningmm0.008Repeatabilitymm0.005Dimension&weightPower capacitykVA40Dimension(LxWxH)mm5100x2950x3650Weight(about)Kg18000/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
