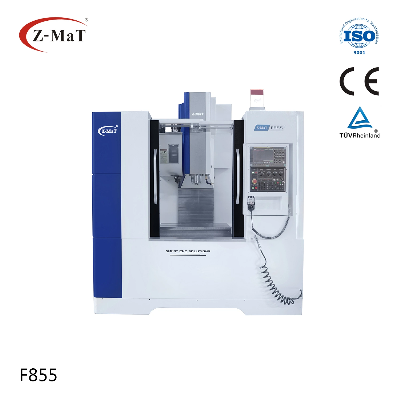

3 Axes Machining Center CNC Milling Machine High Speed Z-MaT F855

VERTICAL MACHINING CENTER SERIES★: Precision linear guideways provide high speed rapids;★: Heavy-duty high quality castings provide a solid structure and rigid foundation;★: The casting bed and Y-shaped column design provide solid support to ensure ultimate dynamic accuracy;★: Direct drive spindle efficiently seperates the heat generated from the motor, which reduces deformation;★: High-performance magazine achieves quick tool change to minimize non-cutting time;★: Full enclosed guard cover and advanced sheet metal design;★: Fanuc 0i MF Plus/Siemens 828D/Mitsubishi M80A control systems;TECHNICAL PARAMETERSItemSpecificationsUnitF855TableTable sizemm950x550T slotN/A18x5x90Max.loadKg500TravelX/Y/Z travelmm800/550/550Spindle nose to tablemm130-680Spindle center to columnmm570Guideway typeN/ALM(Roller)SpindleSpindle typeN/ABT40Main servo motorkW11/7.5Spindle speedrpm8000, *12000Feed&MagazineX/Y/Z axis rapid traversem/min48/48/48ATC capacity/typeN/A24/DiskMax.weight of toolKg8Dimension&weightPower capacitykVA24Dimension(LxWxH)mm2500x2100x2300Weight(about)Kg6000/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
