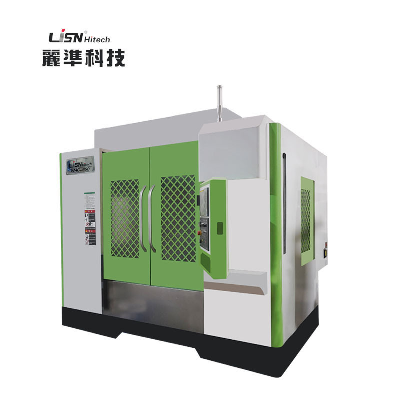

Vmc-650 5 Axis CNC Vertical Machining Center CNC Machine Center

  Product DescriptionThe 5 Axis CNC Vertical Machining Center VMC 650 is equiped with High precision roller type guideway, both X,Y,Z are using ultra-rigid roller linear guideway. With the characteristics of heavy cutting rigidity of hard guideway and fast movement and low wear of linear guideway, the rigidity and control are greatly improved. At the same time, the machine is equipped with the chip removal system, which can effectively clean up the debris on the workbench, and better ensure the work efficiency. Detailed PhotosProduct ParametersITEMMODELSVMC650 WORKTABLE (WIDTH*LENGTH) mm420*700DISTANCE BETWEEN T SLOTSmm3-18*150MAX LOAD BEARING OF WORKTABLEkg200X/Y/Z AXIS TRAVELmm650/430/4504-AXIS/2005-AXIS/250DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm150-600SPINDLE HOLE TAPER BT40SPINDLE SPEED RANGEr/min10000TRANSMISSION OF SPINDLE BOXBELT/DIRECTBELT/DIRECTSPINDLE MOTOR POWERkW7.5X/Y/Z RAPID FEED SPEEDm/min36*36*24MAX CUTTING FEED SPEEDmm/min10000TOOLS MAGAZINE CAPACITYpcs24FULL TOOLS MAX TOOL DIAMETERmm80MAX.TOOLS ALLOWABLE WEIGHTkg7MAX.TOOLS ALLOWABLE LENGTHmm200X/Y/Z POSITION ACCURACYmm0.008X/Y/Z RE-POSITION ACCURACYmm0.005MACHINE DIMENSIONmm2300*2250*2450MACHINE WEIGHTkg4300  Standard Configuration for VMC Series1. Full Cover shield 2. Self-lubrication system 3. Working lights 4. Warning lights 5. Working condition warning lights 6. Self-powered electrical shutoff system 7. Clean air gun/ Water Tank / Transformer 8. Spindle air curtain and dust control system 9. 10000 RPM spindle 10.Worktable cleaning water gun Optional Configuration for VMC Series1. 24 disc manipulator tool magazine 2. Crawler chips remover 3. NC rotary table (4 Axis) 4. CTS 5. Tool detection system 6,. AJO 7. 12000 & 15000 RPM Direct connection spindle 8. Oil mist purifier  Company Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
