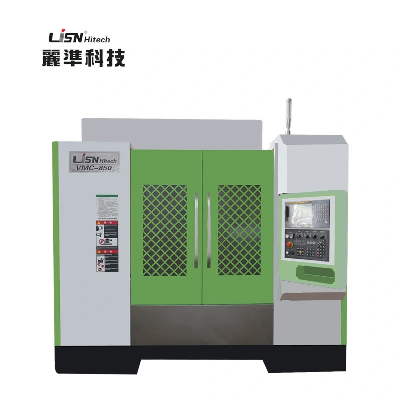

Product DescriptionThe 4 axis VMC-850 is a high performance CNC vertical machining center developed and manufactured by our company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer's needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency. Main FeaturesMitsubishi M80 control systemHigh speed and precision spindleExcellent chip flushing systemExcellent structure designHigh rigidity of the whole machineExcellent worktable size: 500mm*1000mmExcellent load capability of worktable: 200kgDetailed PhotosProduct Parameters ITEMMODELSVMC850WORKTABLE (WIDTH*LENGTH)mm500*1000DISTANCE BETWEEN T SLOTSmm4*18*100MAX LOAD BEARING OF WORKTABLEkg500X/Y/Z AXIS TRAVELmm800/500/500DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm120-620SPINDLE HOLE TAPER BT40SPINDLE SPEED RANGEr/min1200TRANSMISSION OF SPINDLE BOXBELT/DIRECTBELT/DIRECTSPINDLE MOTOR POWERkW7.5X/Y/Z RAPID FEED SPEEDm/min48*48*48MAX CUTTING FEED SPEEDmm/min10000TOOLS MAGAZINE CAPACITYpcs24FULL TOOLS MAX TOOL DIAMETERmm100MAX.TOOLS ALLOWABLE WEIGHTkg7MAX.TOOLS ALLOWABLE LENGTHmm260X/Y/Z POSITION ACCURACYmm0.008X/Y/Z RE-POSITION ACCURACYmm0.005MACHINE DIMENSIONmm2570*2800*2850MACHINE WEIGHTkg4800 Standard Configuration for VMC Series1. Full Cover shield2. Self-lubrication system3. Working lights4. Warning lights5. Working condition warning lights6. Self-powered electrical shutoff system7. Clean air gun/ Water Tank / Transformer8. Spindle air curtain and dust control system9. 10000 RPM spindle10.Worktable cleaning water gunOptional Configuration for VMC Series1. 24 disc manipulator tool magazine2. Crawler chips remover3. NC rotary table (4 Axis)4. CTS5. Tool detection system6,. AJO7. 12000 & 15000 RPM Direct connection spindle8. Oil mist purifierCompany Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
