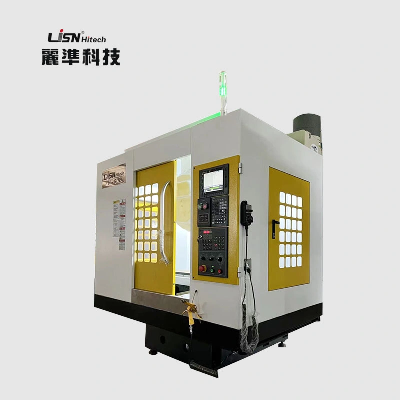

Product DescriptionThe 5 axis TV-600 is a high performance CNC drilling and tapping machine center with characteristics of high stability, high speed, high efficiency drilling and tapping performance. It is widely used in 3C, 5G, shell processing of electronics, parts and shell processing of aerospace, small auto parts, medical devices and other industries. The three-axis transmission system of this machine adopts C3 precision ball screw and ball linear guide rail, and adopts P4 imported bearings. The fast displacement can reach 36m/min, and the dynamic accuracy of machining process can reach 0.005mm. The machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system.The overall rigidity of the machine is very excellent. All the castings are secondary tempered which can provice high rigidity and stability for the machine. Main FeatruesWorktable size: 700mm*420mmMaximum load capability: 250kgHigh performance spindle: 12000RPMMaximum cutting feed speed: 20000RPMHigh strength and rigidity body of the machineExcellent chip removal and flushing system Product Parameters ITEMMODELSTV600WORKTABLE (WIDTH*LENGTH) mm700*420DISTANCE BETWEEN T SLOTSmm4*14*100MAX LOAD BEARING OF WORKTABLEkg250X/Y/Z AXIS TRAVELmm600/400/3400 DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm130-530SPINDLE HOLE TAPER/BT30SPINDLE SPEED RANGEr/min12000TRANSMISSION OF SPINDLE BOXBELT/DIRECTOptionalSPINDLE MOTOR POWERkW3.7/5.5( Mitsubishi)/5.5/7.5(FanucX/Y/Z RAPID FEED SPEEDm/min48/48/60(60/60/60)MAX CUTTING FEED SPEEDmm/min1-20000TOOLS MAGAZINE CAPACITYpcs14()16/18/21()FULL TOOLS MAX TOOL DIAMETERmm∅80/∅120MAX.TOOLS ALLOWABLE WEIGHTkg3.5MAX.TOOLS ALLOWABLE LENGTHmm200TOOL CHANGE TIMEsec1.8COOLING PUMP FLOW RATEL/min200X/Y/Z POSITION ACCURACYmm±0.005X/Y/Z RE-POSITION ACCURACYmm±0.003 CONTROL SYSTEM/Mitsubishi, Siemens, FanucSPINDLE BRAND/ROYAL, Taida, VYU CHENGBALLSCREW BRAND/Taiwan, Hiwin, PMIMACHINE DIMENSIONmm1700*2015*2300MACHINE WEIGHTkg1500AIR PRESSUREkg/cm27Standard Configuration for TV SeriesFull Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gunOptional Configuration TV SeriesNC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler Company Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
