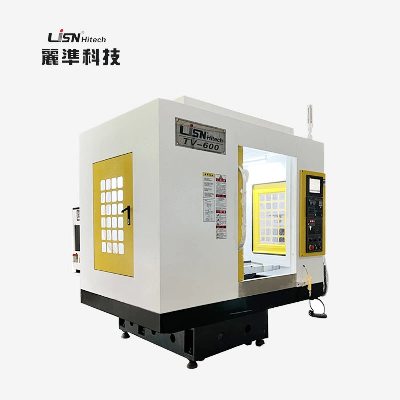

TV-600 CNC Drilling and Tapping Machining Center Milling Machine

Product DescriptionThis TV-600  is a high speed and high precision CNC Drilling and Tapping Machine Center. The base, saddle, table, column and other main structures of this machine are made of high quality materials and have undergone secondary annealing treatment to ensure high rigidity and stability of the structure. This machine is equipped with 200 liter water tank, and equipped with rear row crumbs, the drainage channel inclination angle is large, chip liquid re-flux speed is fast, can quickly wash away the chip, achieve the function of rapid chip removal, effectively avoid the problem of chip accumulation. All three axis use high-torque motors, which can provide 1G acceleration and achieve 0-60m in 0.21 seconds. Straight drive spindle, no noise and vibration problems. It's suitable for tapping 2-D and 3-D surface of various small parts with multiple working faces. The spindle speed range is 12000 RPM. The TV-600 CNC Drilling and Tapping Machine Center is also using Thermal Isolated Direct Drive System which is called TIDD heat source barrier spindle drive system. It can effectively block the motor heat conduction to the spindle, can greatly reduce the thermal elongation of the spindle.Detailed PhotosProduct Parameters  ITEMMODELSTV600WORKTABLE (WIDTH*LENGTH) mm700x420DISTANCE BETWEEN T SLOTSmm3×14×125MAX LOAD BEARING OF WORKTABLEkg200X/Y/Z AXIS TRAVELmm600/400/300SPINDLE HOLE TAPER/BT30SPINDLE SPEED RANGEr/min20000MAX CUTTING FEED SPEEDmm/min1-20000TOOLS MAGAZINE CAPACITYpcs21X/Y/Z POSITION ACCURACYmm±0.005/300X/Y/Z RE-POSITION ACCURACYmm±0.005MACHINE DIMENSIONmm1930×2450×2450MACHINE WEIGHTkg3000Standard Configuration for TV SeriesFull Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gunOptional Configuration TV SeriesNC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.  Company Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
