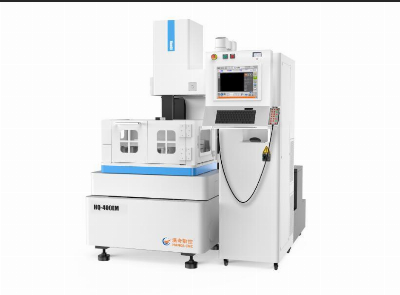

CNC Wedm (servo motor) Hq-400em

Medium-SPEED WIRE EDM with lifting liquid tank ,FU series    Economical Medium-SPEED WIRE EDMHQ-400EM*Cheaper ones*Ultra-low molybdenum wire loss of 150000 mm ² No wire loss*Maximum cutting efficiency: exceeding 300mm ²/ Above min*Best surface coarse precision: Ra ≤ 1.0um    HQ-400EMMachine tool dimensionsMm1600 by 1800 by 2170Cabinet sizeMmAll-in-one machineWeight of machine toolKG1700Table travelMm400 by 320 by 260U, V-axis strokeMm± 25Maximum cutting thicknessMm300Maximum machining taper (angle/thickness) °/mm± 6 °/80Electrode wire diameter rangeMmΦ0.12-0.2Machine tool powerKw≤2Work area  Size of worktableMm Working fluid tankMm Table load-bearing weightKG300Working fluid tank  Filtration accuracyΜm20Maximum volume of the tankL100Pulse power  Drive mode (x/Y)  Precision Ball ScrewDrive mode (U/V)  AC servoSurface roughnessΜmRA ≤1.0Maximum cutting speedMm2/min≥220Speed of silk handling Multilevel frequency controlCNC system  Data Systems HQWNC or AUTO CUTHardware configuration Fan-free industrial computers, 32G solid-state drives, standard PC keyboardsCommunication interface USB, LAN, RS232Control the number of axes 4-axis linkage guide nozzle liftingLanguage interface Chinese, English, Russian, JapaneseUnits of size Metric system, English systemManual control Standard configurationPower source 380V ± 10% , 50/60HZ, 2 kvaEnvironmental conditions 15-30 ° C (temperature)/40-80% (humidity)   Software Quality ControlDetailed PhotosSample PartsProduct Parameters CertificationsCompany Profile1) The chairman has worked at Hanchuan Machine Tool Factory in China (1986-2005), focusing on the field of electrical machining for nearly 40 years;2) In 2005 The company was established , with its factory located in Suzhou High tech Zone, China, covering an area of 20000 meters ²;3) It is a high-tech enterprise in Jiangsu Province and a specialized, refined, and innovative enterprise in Jiangsu Province;4) With over 80 employees and nearly 20 research and development personnel, it is a research and development production oriented enterprise;5) Implement the ISO9001 quality management system and use the Carl Zeiss three coordinate system for precision testing of machine tool components;6)In 2016, we engaged in product cooperation with Beijing Agie Charmilles Industrial Electronics Co., Ltd;7)In 2017,we obtained titles such as Jiangsu High tech Enterprise and Jiangsu Private Science and Technology Enterprise;8)In 2018,Introducing internationally leading production and manufacturing processes, stricter quality management systems, and standardized production processes implemented by Swiss enterprises;9)In 2020,we developed Fully CNC Lifting Liquid Tank Mirror effect EDM,named HQ-U40,the machine which can achieve the optimal surface roughness up to 0.047um;10)In 2022,we moved into the new a new address located in the high-tech zone and received the title of specialized, refined, and innovative enterprise in Jiangsu Province;  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
