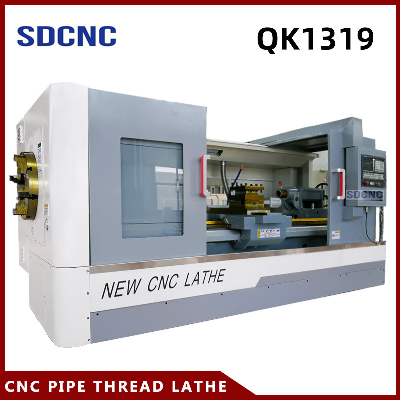

Qk1319pipe Thread Lathe/CNC Lathe/Metal Turning Machine/Horizontal Lathe

 Product Description  SDCNCThis series  CNC Pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.   This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.Detailed PhotosPlease note: machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axisCharacteristic1.Big spindle bore and double chuck to ensure process big diameter pipe.2.One-piece bed adopts high strength iron to ensure rigidity and precision.3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance.4.Carriage and guide way contact surface use Turcite B to maintain accuracy. Stander Configuration1. Siemens controller2. NC turret3. Automatic Lubrication4. Coolant Pump5. Semi-shield1. Optional Configuration1. Fanuc or other brand CNC controller2. Quick change tool post3. Hydraulic turret or Power turret4. Pneumatic chuck5. Hydraulic tailstock6. Pneumatic position limiter7. Tool setting arm8. Full-shield1. Product ParametersItem  UnitQK1319Max dia.swing over bedmm630/800Max dia.swing over cross slidemm340/510Max.length of work-piecemm1500/3000Width of bedmm550Spindle boremm200Power of spindle motorKw11Mode of spindle speed Two gears, smooth adjustmentRange of spindle speedr/minLow:25-120High:100-500Max.traverse of X/ZmmX:350 Z:1250/2750X/Z rapid traversemm/min4000X-axis motorSpeedr/min1500TorgueN.m10PowerKw1.5Z-axis motorSpeedr/min1500TorgueN.m15PowerKw2.3Tailstock quillDiametermm100Travelmm250Taper Morse NO.5Electric tool-postModel LDB4-6163ANo.of tool stations Vertical four-stationDimensionmm32x32Turret indexing timeS2.6Chuck K11-500 three jaw chuckPositioning accuracymm0.020Repositioning accuracymm0.01Overall dimensions(L*W*H)mm3657×1555×1360Machine weightT4.5/5.5  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
