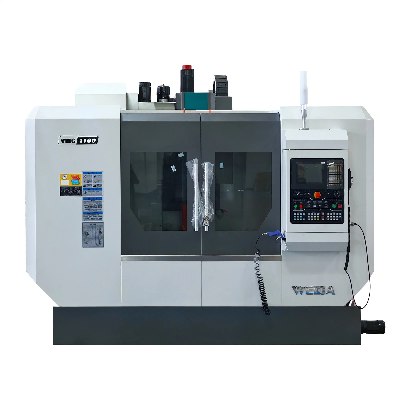

3axis 4 Axis 5axis Vertical Machining Center Taiwan Brand

Product DescriptionThis product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide, guide rail load, span wide, high precision, suitable for heavy load, compact structure and size reasonable, the spindle is servo motor driven by the timing belt. It can realize the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts.  Product Parameters  unitVMC1160Table sizemm1200x600T slot   no5Centre distance mm100T-Width   mm18Max. load of worktablekg600Longitudinal travel  mm1100Cross travelmm600Vertical travelmm600spindle nose to table surfacemm120-720Spindle taper BT40Speed Range rpm40-8000Spindle output torque (Max.)N.M52.5/95.5spindle motor powerkw11/15cuttiing feed  X/Y/Zmm / min1-10000rapid feed  X/Y/Zm / min30/30/24X/Y/Z lead screw sizemm40x12tool magazine capacitypiece24tool magazine type arm typeMax. tool weightkg8Max. Tool dia. (full/empty) 78/120Max. Tool lengthmm300Tool changing time (tool to tool/cut to cut)s1.55/5positioning accuracymm±0.005/300 JISrepeat positioning accuracy mm±0.003    JISoverall dimensions(LxWxH)mm3100×2460×2860Machine weightkg6000   Detailed Photos  Company Profile    Weifang Runlian Economic and Trade Co., Ltd. was established in 2005. It has 15 years of experience in R&D and sales of lubricants series and engraving milling machine. It has a mature operating team and a professional technical R&D team. It has cooperated with more than 40 well-known enterprises in China. Fully trusted by our customers. In order of market demand and specific technical requirements, we are professional our lubricants series and CNC ,VMC,engraving milling machine, and directly provide high quality products and professional after-sales services for the manufacturing industry.    Company vision: become the first-class industrial service provider /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
