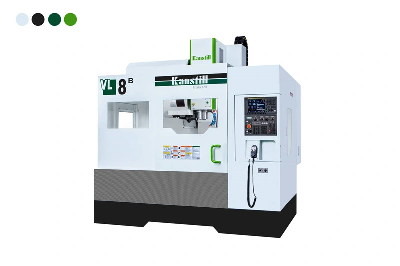

Vertical Milling Machine Vl855 4 Axis CNC Vertical Machining Center Machine

  New concept design, more reasonable machine tool structure, and stronger mechanical rigidity. The casting adopts resin frosting technology, annealing treatment, and natural aging to completely eliminate internal stress in the casting, and the accuracy remains unchanged for a long time  C3 grade ball screw and linear guide rail, Taiwan brand, with guaranteed quality, and machine tool accuracy remains unchanged for a long time,Specification parameters:Model NoVL8Cmachine rangeThree axis strokeX/Y/Z800/550/550Spindle end face to worktable120-700Spindle center to column guide rail surface610stagingWorkbench size1000*550Max load500kgT-groove (number of grooves * width * spacing)5*18*90main shafttaperBT40Spindle speed10000rpmLatin45°Main motor7.5-11KWmovement speedX/Y axis fast movement speed48M/minZ-axis fast movement speed48M/minThree axis cutting feed rate1-10000mm/minX-axis rail35 Roller 4 SliderY-axis rail45 Roller 4 Sliderz-axis rail45 Roller 6 SliderThree-axis screw rodΦ40-P16accuracypositioning accuracy±0.004/300repeatability±0.003magazineNumber of tools24 Knife selection formArbitrary equationMaximum tool length300mmMaximum weight of tool8kgMaximum tool diameterΦ78 φ120Automatic tool change time1.55spressure0.65MPaburialcooling power1000Wlift30Mflow4 cubic meters per hourCoolant capacity280LotherOverall weight5000kgMachine dimensions2600*2850*2800power supplyAC380V 3PH, 50Hztotal power20KW,scope of supply Serial Numberentry name/brandpricenotes 1controller FANUC 0I MF5--- 2lathe bed KANSTILL--- 3Fully enclosed protective cover KANSTILL--- 4main shaft Japan Okada--- 5main shaft FANUC--- 6Spindle driver FANUC--- 7Screw rod Taiwan PMI or HIWIN--- 8Axial motor FANUC--- 9Axial drive FANUC--- 10coupling L+C--- 11Screw bearing SKF/KOYO--- 12Electronic handwheel Japan--- 13Network transmission interface FANUC--- 14USB drive transmission function FANUC--- 15Linear Guide Taiwan PMI or HIWIN--- 16Industrial sealed lighting fluorescent lamp huanan---LED17Three color warning light ONN---LED18Automatic Lubrication System Japan--- 19Blow air cooling function Japan SMC--- 20Flushing cooling function Japan--- 21water cannon Taiwan--- 22Cleaning air gun Taiwan MOBI--- 23Horizontal adjustment pad iron KANSTILL--- 24Fourth axis interface FANUC---  25Spindle cooling function (oil cooler) RUCOL--- 26Chain plate chip conveyor KANSTILL--- 27Spiral chip conveyor KANSTILL--- 2824 robotic tool libraries Taiwan--- 29Spindle center water outlet Japan--- 30CNC rotary table (4th axis) Taiwan---  31packing list KANSTILL--- 32Instructions (including system CD) FANUC--- 33Certificate of conformity KANSTILL--- 34Tools KANSTILL---   FAQ Q: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time?A: Generally it is 35 days , it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: NO.Q: What is your terms of payment ?A: T/T 30% with the order, the rest 70% of total amount T/T before.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
