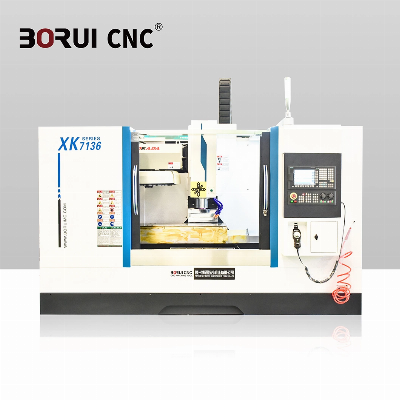

Xh7136 CNC Milling Machine 3 Axis Vertiacal Machining Center

XH7136 metal 3 axis High speed 3 side vertical machining centerProduct DescriptionThe vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.The main performance characteristics:1.The fuselage and main components are  high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce  the vibration of machine on heavy cutting3.The pre tension precision ball screw drive4.The high speed, high precision, high rigidity spindle unit5.The design of oil-water separation6.The intermittent automatic lubrication7.Automatic scraping knife systemThe main specification : XH7136 CNC vertical machining center parametersnameunitNumerical valuemain motor powerkw5.5Spindle inner coneBT40Spindle speedrpm60/80~8000Spindle end to work surface distancemm100~600Distance from the center of the spindle hole to the surface of the columnmm460Work surface sizemm1250×360Table travel longitudinal/horizontalmm900/350Workbench maximum loadkg300Workbench T-slot Groove number/width/pitchmm         3/18/80Maximum fast moving speed   X directionm/min5Maximum fast moving speed   Y directionm/min5Maximum fast moving speed   Z directionm/min4positioning accuracymm0.025Repeatabilitymm0.021Machine tool dimensions (length × width × height) mm2220×1650×2350Net weight of machine toolkg2200Standard configuration:                              1.The CNC system: SINUMERIK 808D2.The knife: The famous Taiwan bamboo hat knife.3.The unclamping cylinder: Taiwan Shangpin4.The weight: Wuxi Xieqing nitrogen balance5.The high quality castings: Resin sand casting6.The spindle: Taiwan famous high speed spindle7.The screw: HIWIN8.The bearing: Japan NTN9.The Internal protection: Total protection Select the configuration:1.M70B/M70A Mitsubishi  FANUC 0i mate MD2.The CNC dividing head3.The taiwan famous brand manipulator knife storehouse4.NC rotary table5.The chip cleaner6.The fourth axisDetails Display Company Profile /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
