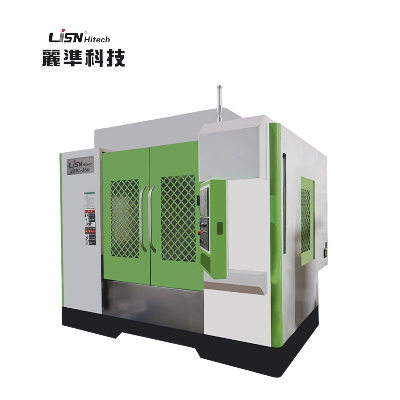

Vmc-850 Vertical 4 Axis Machining Center CNC Milling Machine 12000rpm

  Product DescriptionThis vertical machining center VMC 850 has the characteristics of high speed, high precision and high rigidity. The worktable size of this machine it 450*900, and this machine also adopts high rigid bed, high precision roller type guideway, and integrated bearing block, which can greatly improve the body rigidity, ensure the machine good running accuracy, and also maintian excellent precision stability. The Z axis uses brake servo motor with no counterbalance block design to improve the driving performance of Z axis. This machine occupies a small area and also has high structral strength, thare are also a wealth of optional configuration can be installed. it suitable for processing plate, mold and small shell complex part, can complete milling, boring, drilling, tapping and cutting threads and other process.Detailed PhotosProduct ParametersITEMMODELSVMC850WORKTABLE (WIDTH*LENGTH) mm450*900DISTANCE BETWEEN T SLOTSmm5-18*100MAX LOAD BEARING OF WORKTABLEkg600 X/Y/Z AXIS TRAVELmm800/500/6004-AXIS/2005-AXIS/250DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm110-810/110-610SPINDLE HOLE TAPER BT40SPINDLE SPEED RANGEr/min10000TRANSMISSION OF SPINDLE BOXBELT/DIRECTBELT/DIRECTSPINDLE MOTOR POWERkW7.5X/Y/Z RAPID FEED SPEEDm/min36*36*24MAX CUTTING FEED SPEEDmm/min10000TOOLS MAGAZINE CAPACITYpcs24FULL TOOLS MAX TOOL DIAMETERmm100MAX.TOOLS ALLOWABLE WEIGHTkg7MAX.TOOLS ALLOWABLE LENGTHmm260X/Y/Z POSITION ACCURACYmm0.008X/Y/Z RE-POSITION ACCURACYmm0.005MACHINE DIMENSIONmm2495*1970*2360MACHINE WEIGHTkg6000  Standard Configuration for VMC Series1. Full Cover shield 2. Self-lubrication system 3. Working lights 4. Warning lights 5. Working condition warning lights 6. Self-powered electrical shutoff system 7. Clean air gun/ Water Tank / Transformer 8. Spindle air curtain and dust control system 9. 10000 RPM spindle 10.Worktable cleaning water gun Optional Configuration for VMC Series1. 24 disc manipulator tool magazine 2. Crawler chips remover 3. NC rotary table (4 Axis) 4. CTS 5. Tool detection system 6,. AJO 7. 12000 & 15000 RPM Direct connection spindle 8. Oil mist purifierCompany Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
