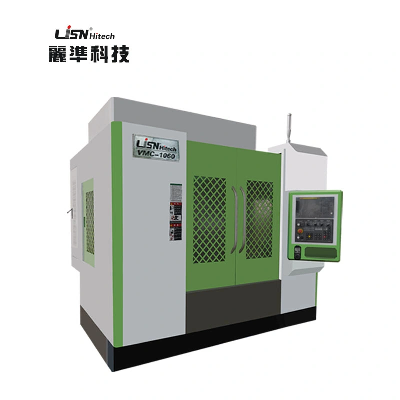

Vmc-1060 CNC Vertical Machining Center CNC Machine Center

  Product DescriptionThe VMC 1060 is one of the machines in the VMC series. Like other VMC series models, the VMC1060 is also characterized by high speed, high accuracy, high rigidity and high stability. Thw worktable size of VMC1060 is 600*1300, and the max cutting speed is 10000 rpm. Large worktable is more convenient for some large or complex parts processing, high-speed cutting speed to ensure the high efficiency of processing. Like other VMC series machines, the spindle of the vmc 1060 is made of high quality materials, it can absorb vibration to ensure that the surface accuracy of the workpiece is not affected by tool vibration. this machine also uses the high power axial servomotor, there will be no backlash and hysteresis problems. The directional slide rail structure equipped with counterweight hammer can greatly prevent the shaking condition when the counterweight moves quickly, ensuring the machining accuracy and low noise.  Detailed PhotosProduct Parameters  ITEMMODELSVMC1060WORKTABLE (WIDTH*LENGTH)mm600*1300DISTANCE BETWEEN T SLOTSmm5-18*120/5-18*120MAX LOAD BEARING OF WORKTABLEkg900X/Y/Z AXIS TRAVELmm1000/600/600DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm180-780/70-670SPINDLE HOLE TAPER 180-780/70-670SPINDLE SPEED RANGEr/min10000TRANSMISSION OF SPINDLE BOXBELT/DIRECTBELT/DIRECTSPINDLE MOTOR POWERkW11X/Y/Z RAPID FEED SPEEDm/min24*24*18MAX CUTTING FEED SPEEDmm/min10000TOOLS MAGAZINE CAPACITYpcs24FULL TOOLS MAX TOOL DIAMETERmm100MAX.TOOLS ALLOWABLE WEIGHTkg7MAX.TOOLS ALLOWABLE LENGTHmm305X/Y/Z POSITION ACCURACYmm0.008X/Y/Z RE-POSITION ACCURACYmm0.005MACHINE DIMENSIONmm3080*2370*2540MACHINE WEIGHTkg7800 Standard Configuration for VMC Series1. Full Cover shield 2. Self-lubrication system 3. Working lights 4. Warning lights 5. Working condition warning lights 6. Self-powered electrical shutoff system 7. Clean air gun/ Water Tank / Transformer 8. Spindle air curtain and dust control system 9. 10000 RPM spindle 10.Worktable cleannig water gunOptional Configuration for VMC Series1. 24 disc manipulator tool magazine 2. Crawler chips remover 3. NC rotary table (4 Axis) 4. CTS 5. Tool detection system 6,. AJO 7. 12000 & 15000 RPM Direct connection spindle 8. Oil mist purifierCompany Profile FAQ 1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
