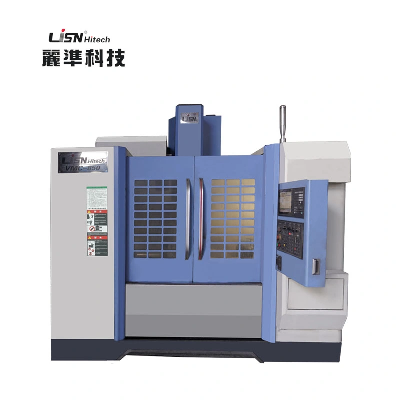

Dm-850 CNC Vertical Machining Center CNC Machine Center

  Product DescriptionDM series is developed and manufactured by our company for heavy cutting. The DM-850 is one of the products in the DM series, which has excellent performance in all aspects. The slide way contact surface is carved for longer precision. The machine is equipped with wide and thick guide rail to ensure stability. The R+W brand high rigidity bellows direct coupling which is imported from Germany is also equiped in this machine, each ball screw and servo motor uses direct connection type, and we also use bellows type couplings to ensure the motion control is reduced to the minimum reverse clearance.  Both the body and the base of the machine are made of high hardness and high rigidity material castings. With reasonable body structure, the overall strength of the machine is extremely high, and both rigidity and stability are the optimal level. Detailed PhotosProduct Parameters  ITEMMODELSDM850WORKTABLE (WIDTH*LENGTH) mm1050*500DISTANCE BETWEEN T SLOTSmm3*18*150MAX LOAD BEARING OF WORKTABLEkg550X/Y/Z AXIS TRAVELmm800/500/5504-AXIS/ 5-AXIS/ DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm105-655SPINDLE HOLE TAPER TB40SPINDLE SPEED RANGEr/min8000TRANSMISSION OF SPINDLE BOXBELT/DIRECTBELT/DIRECTSPINDLE MOTOR POWERkW7.5X/Y/Z RAPID FEED SPEEDm/min18/18/18MAX CUTTING FEED SPEEDmm/min10000TOOLS MAGAZINE CAPACITYpcs24FULL TOOLS MAX TOOL DIAMETERmm80MAX.TOOLS ALLOWABLE WEIGHTkg7MAX.TOOLS ALLOWABLE LENGTHmm300X/Y/Z POSITION ACCURACYmm0.008X/Y/Z RE-POSITION ACCURACYmm0.005MACHINE DIMENSIONmm2600*2350*2500MACHINE WEIGHTkg5300Standard Configuration for DM Series1. Full Cover shield 2. Self-lubrication system 3. Working lights 4. Warning lights 5. Working condition warning lights 6. M30 Self-powered electrical shutoff system 7. Clean air gun/ Water Tank / Transformer 8. Spindle air curtain and dust control system 9. Electric box heat exchanger10.Worktable cleaning water gunOptional Configuration for DM Series1. NC rotary table (4 Axis) 2. CTS 3. Tool detection system 4. Automatic tool length measurement and damage detector 5. Three axis optical ruler 6,.Disc type oil-water separator 7. Crawler iron filings carrier 8. AJOCompany Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
