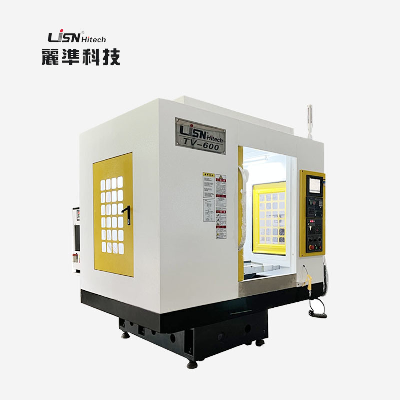

TV600 3 Axis CNC Drilling and Tapping Machine Center

Product DescriptionThe TV-600 is a high-performance CNC drilling and tapping machining center developed by our company. It has the characteristics of high speed, high precision, high stability and high rigidity. It is designed with ultra-rigid structure and X/Y/Z axis high precision linear guide and ball screw with locking preload design, which can provide you with fast, powerful and stable machining performance, making it suitable for high precision parts machining and mold machining.This machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system. The machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system. It can be widely used in the automotive, machinery, instrumentation, textile, and electronic instrumentation industries with high precision and high-efficiency machining capability at a very reasonable cost.  Main FeaturesSIEMENS/FANUC/Mitsubishi CNC System Controller4th/5th axes rotary tableTool setterOil mist collectorHigh rigidity of the machineHigh speed and precision spindleExcellent chip flushing systemDirect coupling connection, transmission rigid, high precision and stabilityDetailed PhotosProduct Parameters  ITEMMODELSTV600WORKTABLE (WIDTH*LENGTH) mm700*420DISTANCE BETWEEN T SLOTSmm4*14*100MAX LOAD BEARING OF WORKTABLEkg250X/Y/Z AXIS TRAVELmm600/400/3400 DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm130-530SPINDLE HOLE TAPER BT30SPINDLE SPEED RANGEr/min12000TRANSMISSION OF SPINDLE BOXBELT/DIRECTOptionalSPINDLE MOTOR POWERkW3.7/5.5( Mitsubishi)/5.5/7.5(FanucX/Y/Z RAPID FEED SPEEDm/min48/48/60(60/60/60)MAX CUTTING FEED SPEEDmm/min1-20000TOOLS MAGAZINE CAPACITYpcs14()16/18/21()FULL TOOLS MAX TOOL DIAMETERmm∅80/∅120MAX.TOOLS ALLOWABLE WEIGHTkg3.5MAX.TOOLS ALLOWABLE LENGTHmm200TOOL CHANGE TIMEsec1.8COOLING PUMP FLOW RATEL/min200X/Y/Z POSITION ACCURACYmm±0.005X/Y/Z RE-POSITION ACCURACYmm±0.003 CONTROL SYSTEM Mitsubishi, Siemens, FanucSPINDLE BRAND ROYAL, Taida, VYU CHENGBALLSCREW BRAND Taiwan, Hiwin, PMITOOL MAGAZINE BRAND  HEAT EXCHANGER BRAND  MACHINE DIMENSIONmm1700*2015*2300MACHINE WEIGHTkg1500AIR PRESSUREkg/cm27Standard Configuration for TV SeriesFull Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gunOptional Configuration TV SeriesNC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler  Company ProfileLizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity. FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
