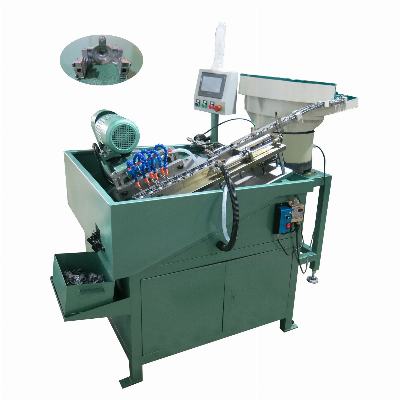

Fully Automatic Aluminum Castings Threading Machine

Fully Automatic Aluminum Castings Threading MachineStandard Type Drilling Machine                                                                                                  Drilling MachineCX-8510CX-13016CX-15035Maximum Drilling Dia.10mm16mm35mmSpindle Sleeve Dia.50mm60mm90mmSpindle Stroke85mm130mm150mmSpindle to Column Distance200mm210mm250mmSpindle Nose to Work Table100-330mm100-350mm120-420mmSpindle TapperJT6/ER20JT6/ER25MT4/Line GrooveSpindle Speed1400/2800 rpm1400/2000 rpm1000/1400 rpmMachine Head Travel280mm280mm320mmMotor Power0.75kw1.5kw2.2kwElectricity380V/415/440V 3 Phase380V/415/440V 3 Phase380V/415/440V 3 PhaseStandard Type Tapping Machine                                                                                                Tapping MachineCX-4508CX-6516CX-6532Spindle Stroke45mm65mm65mmTapping Range1-8mm2-16mm5-32mmMachine Head Travel260mm300mm460mmSpindle Nose to Work Table90-350mm100-350mm100-600mmSpindle Speed50HZ:1340/760/420rpm 60HZ:1600/900/500rpm50HZ:590/400/250rpm60HZ:720/480/300rpm50HZ:280/150/80rpm60HZ:320/180/120rpmStandard Gear Pitch(mm)0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,0.75,0.8,1.0,1.250.4,0.45,0.5,0.7,0.75,0.8,1.0,1.25,1.5,1.75,1.8,2.0,2.50.8,1.0,1.25,1.75,2.0,2.5,3.2,3.5Standard Gear Pitch(inch)16,18,20,24,28,32,40,44,48,56,6410,11,12,14,16,18,19,20,24,288,9,10,11,12,14,16,19Multi spindle CapacityM2*16,M3*9,M4*5,M5*3,M6*2,M8*1M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1Motor Power0.75kw1.5kw2.2kwElectricity380V/415/440V  3 Phase380V/415/440V 3 Phase380V/415/440V 3 Phase  Non Standard Type / SPM Type Drilling  and Tapping Machine                                                    Drilling and Tapping Heads                                                                                                      CX-HD5-85 AIR/HYDRAULIC DRILLING HEADMaximum Drilling  φ1-φ10mmMain Spindle Taper   ER20/JT6Main Spindle    Travel 85mmSpindle Max Rotating Speed  1400 (r/min)Cylinder Area  21.6m2Center Height  70±0.01Motor 0.75KWNet Weight 38kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 115*464*370mm CX-HD6-130 HYDRAULIC DRILLING HEADMaximum Drilling  φ1-φ16 mmMain Spindle Taper   ER25/JT6Main Spindle Travel  130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area  forward 37.1m2  backward 15.8m2Center Height  70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H)  160*719*417mm CX-HD8-150 HYDRAULIC DRILLING HEADMaximum Drilling  φ1-φ35mmMain Spindle Taper  MT4/LINE GROOVEMain Spindle Travel  150mmSpindle Max Rotating Speed1500 (r/min)Cylinder Area forward 71.2m2  backward 31.4m2Center Height  90±0.01Motor1.5KWNet Weight67kgUsing Hydraulic20-30 kg/cm2Size(L*W*H)  280*860*470mm Multi Spindle Device                                                                                                                Our engineers will design the multi spindle device according to your product's size and the holes distribution. It can be very small or very big.  There are two types,  fixed type and adjustable type.  Fixed type multi spindle device, the spindles are fixed, can't be adjustable. Adjustable type multi spindle device, the spindles are adjustable, can be suitable for various kinds of products. Vibrating Plate                                                                                                                         We have our own vibrating plate work shop and we have experience on it more than 20 years. Fixtures/Jigs                                                                                                                           We are providing jigs/fixtures design service.  All designs are based on easy control, safety and high efficiency .  Machined Samples                                                                                                                     Our Customers                                                                                                                      FAQ                                                                                                                                         1. Are you a manufacturer or trade company? -- Manufacturer2. What is payment terms? -- 30% deposit, the balance will be paid before delivery3. What is the warranty time ? -- One year warranty and life time maintenance. 4. Do you provide OEM service?-- Yes5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ? -- Shenzhen / Guangzhou port     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
