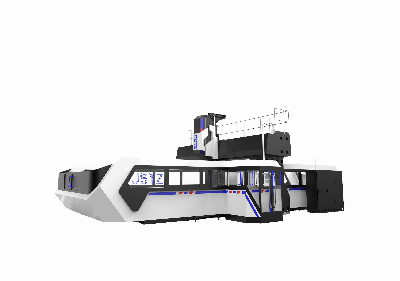

Skzx-5050 Ganmen Drilling Center CNC Machine for Gantry Machining Center

SKZX5050 gantry drilling and machining center is a large-scale workbench mobile fixed column and fixed beam high-speed drilling and milling gantry machining center independently developed by our company for wind power generation, slewing bearing, chemical equipment and other industries. Its characteristics mainly reflect high-speed drilling, high-speed cutting, to achieve internal and external cooling functions, in recent years this series of products have been widely used by customers.     This product has a wide range of applications and strong processing capacity. Mainly used for all kinds of extra-large bearing rings inner and outer ring hole rough finishing, machine tools can realize the box, shell, bearing and other parts of the bore and hole system, contour complex shape, surface and various types of plane boring, milling, drilling and other processes, with expansion, hinge, countersinking plane, tapping, milling thread and straight, arc interpolation and other functions.     The machining center adopts the international advanced machine tool structure, applies finite element analysis, and effectively predicts and optimizes the static and dynamic performance of the machine tool, so that the performance of the machine tool is effectively guaranteed, and has a high performance-price ratio. CNC system, hydraulic system, feed system, speed regulation system, etc. all adopt domestic leading, international advanced mature technology, high precision of executive components, good reliability, excellent dynamic quality. First, the basic performance and characteristics of the machine toolSKZX5050 gantry machining center is a large-scale workbench mobile fixed column fixed beam high-speed drilling and milling gantry machining center independently developed by our company for wind power generation, slewing bearing, chemical equipment and other industries. Its characteristics mainly reflect high-speed drilling, high-speed cutting, to achieve internal and external cooling functions, in recent years this series of products have been widely used by customers.     This product has a wide range of applications and strong processing capacity. Mainly used in all kinds of extra-large bearing ring inner and outer ring hole rough finishing, machine tools can realize the box, shell, bearing and other parts of the bore and hole system, contour complex shape, surface and various planes of boring, milling, drilling and other processes, with expansion, hinge, countersinking plane, tapping, milling thread and straight, arc interpolation and other functions.     The machining center adopts the international advanced machine tool structure, applies finite element analysis, and effectively predicts and optimizes the static and dynamic performance of the machine tool, so that the performance of the machine tool is effectively guaranteed, and has a high performance-price ratio. CNC system, hydraulic system, feed system, speed regulation system, etc. all adopt domestic leading and international advanced mature technology, and the execution components have high precision, good reliability and excellent dynamic quality.Feature 1:The spindle box adopts asliding ram structure, which can realize high-power heavy-duty cutting and high-speed drilling functions, and  the guide railis a squarequenching-pastedsliding guide pair, with high rigidity, good vibration absorption and high stability.  TheY-axis slide seat has a long length of inclusion for the ram guide, which keeps the square ram cutting smoothly when extended machining. The ram guide rail is ground by GermanWALDRICHguide rail grinding machine, with high precision and good stability; German WALDRICHrail grinder ramFeature 2:Self-developed programming software, CAD/CAMgraphics can be automatically converted into processing program functions when drilling, eliminatingthe cumbersome steps of manual programming. Feature 3:This machine tool hasdrillingreal-time torque detection function, can set and protect the tool torque, when the tool wear cutting torque is greater than the set torque value for tool lifting shutdown protection, to ensure that the tool will not be damaged, greatly reduce the cost of tool use. Feature 4:This equipment adopts GermanSP laser geometric measuring instrument from the guide rail installation, detects the straightness and levelness of the guide rail, so that the machine tool slides on the guide rail more smoothly and accurately, and uses laser interferometer correction to accurately detect and compensate for pitch error, backlash, positioning accuracy and repeated positioning accuracy to ensure the dynamic, static stability and processing accuracy of the machine. Feature 5:The use of Taiwan Jianchun center effluent spindle, front four rear two group bearings, so that the spindle has high precision, high load and low temperature rise, with GermanSIEMENShigh-power servo spindle motor, through TaiwanGTPtwo-speed gearbox automatic shift transmission Passed to the p
