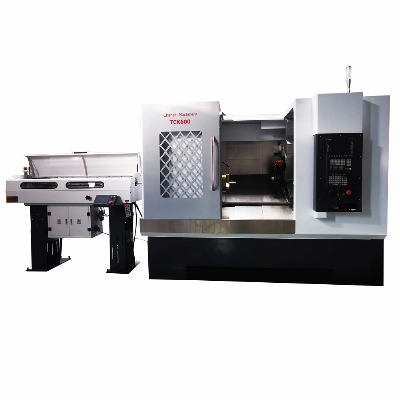

Tck600 CNC Tuning Milling Lathe Machine with Y Axis and Tailstock

  Product DescriptionCNC Lathe Turning Milling Machine TCK600/TCK700 with Siemens 828D controlModel Number : TCK-600* Stable performance and excellent structure* High precision* Automatic feeding* Easy to operate* Customized service provided    Detailed PhotosQuality CNC system Siemens 828DComply with the ergonomic interactive interface to complete the precision machining requirements . (Fanuc/Mitusubishi/Siemens/Syntec) Choose Materials CarefullyKeep improving and use high-quality materials to make the machine last longer.Quality castingsThe base is cast as a whole, with a 45-degree inclined bed, high strength and good shock absorption .10 Inch 3-jaw chuckThe chuck of this machine tool is a standard configuration, which can meet the processing needs of most users. Products from other manufacturers can also be configured according to user needs.Tailstock  Thickened viewing shieldThe observation shield is made of thickened material, which is more convenient for observation work. 12-Station Power Turret with live toolsY-axis optionalSpecifications :ItemUnitSpecificationRemarksThe maximum turning diameter on the bedmm600 The maximum turning diameter on the slidemm350 Center distancemm850 Z direction maximum strokemm750 X direction maximum strokemm260 X/Z axis rapid traverse speedM/min20/20 Spindle end type and code A2-8 Spindle through hole diametermmΦ90 Tube inner diametermmΦ75 SpindleSpindle speedr/min2500 Spindle speed series CVT Main motor output powerkw11-15 Servo spindle ChuckChuck Diameter/Typemm10² Three claws hollow Repeatabilitymm0.005 positioning accuracymm0.01 Standard Tool Holder Form 12-station turretservo hydraulicMaximum stroke of tailstock sleevemm120  Tailstock sleeve diameter75 Machine weightkg4500 Machine tool dimensions (length x width x height)mm3300x1900x2300(excluding the length of the cutting machine)Including chip removal machine length 4400  Main precision:Test itemsFactory StandardProcessing PrecisionIT6Processing workpiece roundness0.003mm/Ф75Consistency of machining diameter0.010mm / 150mmProcessing workpiece flatness0.010mm/Ф200mmProcessing workpiece surface roughnessouter circle Ra1.6μmArc surface, conical surface Ra3.2μm  Main configuration of machine tool and list of purchased parts:Serial No.NameManufacturerModels and SpecificationsQtyOrigin1CNC systemSiemensSiemens 8281Germany2Main motorSiemens11-15kw1Germany3X axis servo motorSiemens15NM1Germany4Z axis servo motorSiemens        15NM1Germany6X/Z axis ball screwTBI4010/4010 C32Taiwan, China7X-axis guide railHWIN/PMI45 gauge roller2Taiwan, China8Z-axis guide railHWIN/PMI45 gauge roller2Taiwan, China10Spindle bearingNTUSP4 grade3Germany11Screw bearingNSK25X62X154Japan12TurretDiamond Heart12 stations1Taiwan, China13chuck, oil cylinderKPThollow1Joint Venture14TailstockhydraulicMT51 15Hydraulic station    1.5KWMontfort1  FAQQ1: How can I choose the most suitable machines ?A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .      You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
