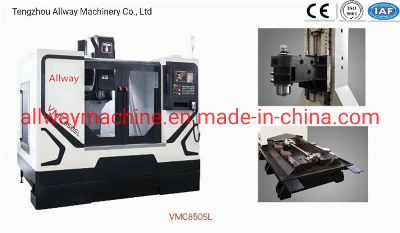

High Speed CNC Vertical Milling Machining Center with Linear Guideway

VMC850SL vertical machining center adopts X, Y, Z three-axis servo direct connects half closed loop control,3-axis are linear guide, Guide rail width, large span, structure and external dimensions are compact and reasonable, servo motor of spindle driven through the synchronous belt. It can processing a variety of a complex parts such as plate, plate, shell,cam, the mould, and once clamping can complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties, medium and small batch parts. Can be configuration the fourth rotation axis for the processing requirements of special part.ItemUnitTechnical parameterspindletaper7:24BT40 pullstud GB/T10944.3-JF40-45(45°) speedr/min60-8000 Spindle noose to tablemm170-770 Spindle center to column guidewaymm580tablesizemm1100×500 T slot No./width/between spacemm5/18/100 Max. loading capacitykg500Ball screwX axismmφ40×16 Y axismmφ40×16 Z axismmφ40×16travelX axismm800 Y axismm500 Z axismm600Max. rapid traverse X axism/min32 Y axism/min32 Z axism/min24Tool magazineMax. tool diameter(w/o adjacent tool)mmφ80/φ125 Max. tool lengthmm250 Max. tool weightkg8 tool capacity 16/24coolantcoolant motorW530 coolant flow-rateL/min40 coolant tank capacityL350lubrication system Auto position accuracymm0.016/0.012/0.012Re-position accuracymm0.01/0.006/0.006powerAC voltageVAs required frequencyHz50 or 60total power capacityKVA15air pressureMPa0.5-0.7machine weightkg5700machine size(L×W×H)mm2700×2300×25003.STANDARD ACCESSORIES:1) Taiwan speed spindle unit(8000rpm).2) Spindle servo motor: Power7.5 torque 36Nm;3) 24 tools ATC made in Taiwan;4) Manual pulse generator(hand wheel);5) hand air gun;6)Z axis rigid tapping;7) Z axis balancing weight ;8) Centralized  automatic oil lubrication; ;9)outside water coolant and air coolant system;10)chip by manual;11)external air cooling;12)All protective sheet metal shield and guide shield;13)leveling pad;14) Work ligh;15)warning lamp;16)Faunc 0i MF5 CNC syste4.OPTIONAL ACCESSORIES:1) Mitsubishi M70; Siemens ,GSK, KND CNC system;2) BT50 spindle unit;3)servo spindle motor ,power is 11KW.4)The 4th axis ;                                     5)Taiwan  umbrella type 16T capacity; 6)coolant through spindle; annular spray high speed spindle unit;                         7)oil cooling spindle;8)Automatic chip removal(chain type);                  9) auto tool length measurement .  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
