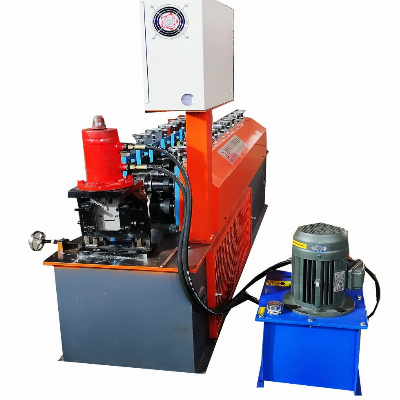

U C Building Machinery Equipment with Punching

Product information1. Technique parameters (1) Processing material: Aluzinc/galvanized steel/colored steel coil (2) Material thickness: 0.3-0.8mm (3) Main motor power: 5.5 kw (4) Pump power: 4 kw (5) Shaft diameter: 65mm (6) Forming steps: 13 steps (7) Roller material: 45# forged steel, with hard chrome plating (8) Main frame: 300H steel (9) Medium plate thickness: 14mm (10) Control systerm: PLC computer control with inverter (11) Power supply: 380V, 3 Phase, 50Hz (12) 0veral sized: 4500mm*1000mm*1500mm (13)Total weight: 2 tons 2. Specific description (1) Manual decoiler Un-powered, single head, max capacity: 5000kg (2) hydraulic pump station It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job. (3) Computer control cabinet It adopts TaiDa PLC to control, the target sheet length is adjustable. Computed mode has two modes: Automatic and manual. Touch screen. (4) Output table It is used to load the finished sheet. This kind is convenient for shipment. (5) Spare parts Product show3. Payment termTT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video 4. Warranty12 months, and lifelong technical support service 5. InstallationIf you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary. 6. PackageStandard export package, water-proof package, covered with plastic film No.NameUnitQty1Manual decoilerset12Main forming machineset13PLC control systemset14Hydraulic pump stationset15Post cutset16Electric motorset17Output tableset1 WarrantyPRODUCTS WARRANTY12 months, and we will provide the technical support for the whole life of the equipment. USAGE AND FEATUREThe feature looks beautiful, elegant and noble. those are widely used in building the factory, hotel, and mobile house and so on. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers. REMARKS 1 .The machine can according to your requirement to set the color2. Within in one year if any parts go broken we will send new ones to replace for free3. If you want to learn more about the product please login our website or contract to usSERVICE One years for free, after the warranty period. we will help you repair the machine, you only responsible for the labour and parts, when the machine have some problemEXPORT MARKET Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. TERMS 1. Delivery: in stock2. Package: Export Standard package for container3. Validity: good for 30day    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
