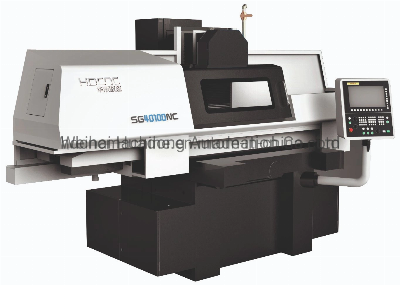

High Precision CNC Hydraulic Series Grinder Sg3063nc3 Surface Grinding Machine with CE

1.Machine FeaturesNC2 model the longitudinal movement is driven by hydraulic,the vertical movement and transverse movement adopt precision ballscrew,the two axes are driven by AC servo motor and CNC system.they have high feed sensitivity.It can be used for automatic grinding of plane, forming surface (two axes are linked to realize special-shaped grinding wheel dressing, so as to realize forming surface grinding), groove or ladder with unequal distance and width.It is easy to operate and efficient.NC3 modelits three axes adopt precision ballscrew,it is driven by AC servo motor and CNC system,in addition to the NC2 functions,It can also realize the surface grinding of concave and convex surface, arc surface and other special shapes through the longitudinal and transverse direction linkage.2.Details parametersSGA series parametersSpecificationsSG2050NC2SG2050NC3SG2550NC2SG2550NC3SG3063NC2SG3063NC3SG4080NC2SG4080NC3SG30100NC2SG30100NC3SG40100NC2SG40100NC3table size(W*L)mm200*460250*500305*635406*813305*1020406*1020Max.longitudinal travelmm51056076591011301130Max. transverse travelmm238275340450340450Max. distance from spindlecenter to table mm450580magnetic chuck sizemm200*460250*500300*600400*800300*1000400*1000Longitudinal feedm/min5-25(NC2 model);0.02-15(NC3model)MPG feedmm/div.0.005(NC3)worktable transverse movementAuto feedmm/stroke0.005-12rapid speedmm/min0-1handwheel feedmm/div.0.005wheelhead vertical movementAuto feedmm/stroke0.001-0.005rapid speedmm/min0-1handwheel feedmm/div.0.001wheel Speed Rpm28501450wheel sizemm200*20*31.75350*40*127Spindle motorKw1.52.25.5hydraulic motorKW0.75(NC2 model)2.2(NC2 model)cooling motorKW0.040.125CNC system Fanuc    Siemens     HNCMax. table load (include chuck)Kg120180270500400600Gross weightKg160018002600330032003800Package sizecm178*150*215200*210*215235*222*215285*227*215295*222*215295*227*215  3.Standard accessories4.Optional accessories you can choose5.Company honors 6.Top view of surface grinder workshop7. Advantages1.Factory direct sales, product quality and after-sale can be effectively guaranteed2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them8.After-sale servicesI. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.III. Provide spare parts and spare parts at preferential prices for a long time.IV.the warranty is one year after machine out of our company.9.Exhibitions/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
