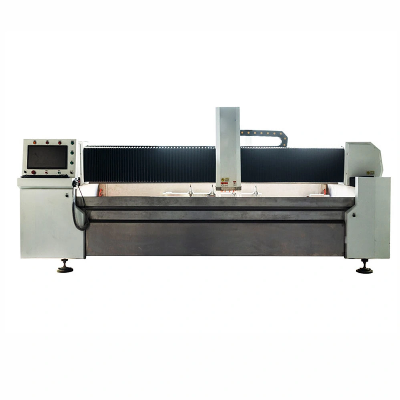

New CNC Milling, Drilling, Grinding and Polishing Glass Edging Machine

Introduction       This equipment adopt CNC control system ,through the interface set the control process size and speed technology ,high precision straight guide rail and ball screw drive structure and control system ensures machining dimension accuracy,could realize the thickness in (2~19)mm glass grind and chamfer . It is suitable for rough grinding and polishing of glass in household appliances, furniture, automobiles, screens, bathrooms, etc.DATA SHEETX-K2515 CNC Shape Edging Processing Center Specification ModelFX-S2515Spindle travel( Axis)X Axis2800MMY Axis1800MMZ Axis120MMFrom Bottom of Z axis to working table 55MMWorking Table(30mm 6061 aluminum )Working table area 2700*1600Max Loading 500KGMilling work tableSurface adsorptionMachine tick-walled squareWelding,heat treatment,vibrating ageing treatment200*300*12   200*200*12stainless steel sheet1.5mm -2mmSpindles(For Edging Only)Wheel Diameter¢22Rotate Speed3000-9000rotating modedirect connectionLUBRICATIONHigh temperature butter Cooling SystemWaterSpindle motor7.5KW3 Axis motor horsepower4*1.5kwFeed SpeedX,Y axis Speed10M/MinZ axis speed6M/MinMax cut feed speeds10m/minPrecisionPositioning Precision ±0.05Repeatability ±0.03finished product precision ±0.2MMProcessing Size Max size:2500*1500mm;  Min size :100*100mmThickness2-19MMWeight and SizeMachine Weight 3000KGPower Consumption15KWFloor Space(length*wide*height)4.2*3*1.8MActual measurement data✓  Max. Process size :2500*1500✓  Min. Process size: 100*100(customed the sucker).✓  process thickness :2-10MM rough grinding ,fine grinding.4-8MM polishing✓  Finished product ratio:up to 97%(less than 6mm rough and fine grinding ,cutting conform inquiry ). 95% (polishing product , 3%      could repair ) ✓  Speed:          120Mo. 8~12m/min                          150Mo. 6~8m/min                          220Mo. 3~6m/min ★★   2mm,3mm It can be directly processed by thin wheel. To achieve the effect of thick glass, it is necessary to use the No. 1 and No. 2 wheels.                The processing speed is greatly affected by the glass cutting precision, the amount of edging and the grinding wheel manufacturers.✓  Minimum inner radius:R10   Minimum outer radius: R1 .✓  Acceptance method: The buyer provides a product. After the commissioning is completed, 100 pieces are completed, and the yield is 97%. The         qualified product is qualified for cutting. The finished product error is ±0.2MM, no bright spots, no bright bars, no Focal edge).notice★★   Ambient temperature is 7 ° C ~ 45 ° C, relative humidity ≤ 60% under normal conditions★★   Gas source requirements: ≥ 0.5Mpa, the gas source is required to be stable.★★   Water source: workpiece cooling; no impurity groundwater or tap water★★   Spindle cooling: pure water or tap water plus rust inhibitorOther modelsDESIGNATIONFX-1010FX-1680FX-2010FX-2515FX-3020Largest processing specifications1000*10001600*8002000*10002500*15003000*2000minimumprocessing specifications100*100100*100100*100100*100100*100speed10M/min10M/min10M/min10M/min10M/minr/minSpindle speed3000-90003000-90003000-90003000-90003000-9000Power of spindle7.5KW7.5KW7.5KW7.5KW7.5KWTotal power15kw15kw15kw15kw15kwPositioning accuracy0.020.020.020.020.02weight2000KG3000KG3500KG4000KG4500KGOther ProductsCompany ProfileFounded by two metal equipment industry-leading companies in 2017, Qingdao TOYO Industry Co., Ltd is specialized in developing the glass machine supplying business.Both our parent companies have more than 20 years of experience in the glass machine manufacturing industry, with excellent production capacity and outstanding quality control. Our factories cover a total area of 128, 608 square meters, with 500 technical staff, as well as 60 research and development engineers.Our mission is to provide"excellent price with the same quality, and the same price with high quality".Waiting for your inquiry. A better machine to empower you./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
