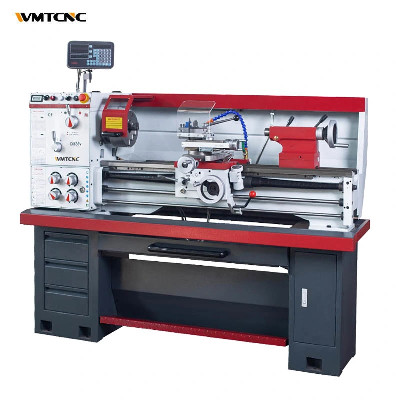

Conventional bench lathe machine C0636V torno paralelo metal lathe

Product DescriptionConventional bench lathe machine C0636V torno paralelo metal lathe main features:1. Precision ground and hardenedbed ways. 2. The spindle is supported with precision roller bearings. 3. Headstock gears are made of high quality steel ground and hardened. 4. Easy operating speed change levers. 5. Removable gap is provided for larger diameter work. 6. Easy operating gear box has various feeds and thread cutting function.   SpecificationC0636VMax. swing over bed360mmMax. swing over cross slide224mmMax. swing over gap502mmDistance between centers1000mmWidth of bed187mmSpindle bore and nose51mmTaper in noseMT5Speed number2 range, variable speedsCross slide travel170mmCompound rest travel95mmSpindle speed rangeL 40-400/ H -180-1800Max. section of tool16mmx16mm(5/8"x5/8")Threads inch pitches4-56TPI/34 kindsThreads metric pitches0.4-7mm/26 kindslongitudinal feeds imperial32Nos.0.002-0.548"/revlongitudinal feeds metric32Nos.0.052-0.392mm/revCross feeds imperial32Nos.0.007-0.0187"/revCross feeds metric32Nos.0.014-0.380mm/revTailstock quill taper and travelMT4Tailstock quill diameter42mmMain motor power2kwCoolant pump power40wPacking size1930*760*1690N.w/G.w730/780kg     Detailed ImagesCompany ProfileFAQQ1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: How about your quality?A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?A7: Yes, we can design and manufacture according to your specific requirements.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
