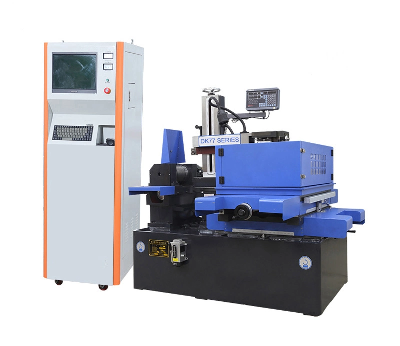

High Quality High Speed Wire Cut Wedm Machine for Metal Dk77100

The WEDM is composed of main machine, electrical control system, software and cooling filter system. The main machine is mainly composed of fuselage, column, wire frame, workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has five axes of X, y, u, V and Z, among which the four axes of X, y, u and V are linked and driven by step without resistance and constant current. The vertical cabinet dqe-ds-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen.Long term normal working conditions of the machine:  Workingenvironmenttemperature5~40ºCrelative humidity≤85%Workingtemperatureofcooling water≤30ºCPower Supply380V±5%, can make as 415V;50Hz±1Hz;Three phase alternating current2.technical requirementS/Nprojectparameter1modelDK771002Electrical cabinet formVertical cabinet (full step type)3GuideSteel rail4Lead screw formBall screw5Xyuv motion motor formReactive stepping motor6Working mode of wire conveying motorFrequency converter speed regulation1~12m/s7Machine tool protectionEnvironmental protection cover8Resolution of motion axis0.001mm9Table size1600*115010X, y axis stroke1000X1200mm11U, V axis travel±35×±35mm,(±60×±60m)12Machining taper / machining thickness±6°(±15°)/80mm13Maximum straight cutting thickness1000mm(Z-axis manual lifting)14control mode4 axis linkage15Maximum load capacity1100kg16Maximum processing current8A17Maximum machiningefficiencyCr12,H=60mm≥180 mm²/m,Aluminum cutting≥220 mm²/m18Surface roughness(Straight line cutting,H≤40mm)Ra≤1.6μm19Cutting accuracyCr12,H=40mm≤0.01mm20Radial runout of wire storage cylinder≤0.02mm21Molybdenum wire diameter range0.12~0.22mm22Wire storage capacity of wire storagecylinder250m23Loss of molybdenum wireCr12,H=40mm≤0.02mm24Cutting power supplyHigh frequency power supply system withoutresistance25operating systemWindows XP26Control systemAUTOCUT27communication interfaceLAN,RS232,USB28Operation functionDrawing or CAD (DXF) drawing import29Volume of working tank55L30Working fluid filtration modeFilter screen filtration31Weight of whole machine6000kg32Overall dimension of main engine2500x2300x2500mm33Cabinet size730×630×1820mm34Rated power of electric appliance≤ 2.7 kW   3.List of attached accessories  S/NProduct nameSpecificationsFree delivery1scissors312HexagonalwrenchM4-M10(5)13Stiff hands14-1714WoodenscrewdriverOne type, cross type25Oil gunMetal shell16Molybdenumwire calibratorH80mm17Top wire wheel 18Working fluidWater working fluid, Jiarun jr3a19Electrode wireRecommended0.18mmmolybdenum wire500m10Guide wheelDia.49.5mm211Bearing625ZZ812Conductive block12mm×12mm213ReversingswitchNPN LJ186A3-8-Z BX214Silkconveyorbelt1101/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
