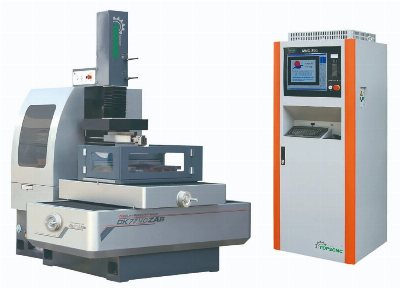

Electrical Discharge Machining CNC Wire Cut EDM Machine

Product descriptionTechnique parametersUnitDK7732ZBTable size  (WxD)mm440×680Table travel (XxY)mm320×400Table travel (UxV)mm140×140Z-axis control manual controlZ-axis guideway slide guidesMax. workpiece weightkg600Thickness of workpiecemm350Max.taper angle ±15°/80mmDiameter of cutting wiremmφ0.15~φ0.20mm(recommendφ0.18mm)Feeding speedm/sec1~11.4m/sec  adjustablePrecisionmm≤0.015Machining speedmm²/min>200Surface roughnessμmRa≤2.5Motor type X,Y,U,V stepper motorControl axis 4 axis simultaneousMin. control pacemm0.001Power supply 3N-380V/50HzMax. working currentA12Power consumptionKw1Working liquid JA-1Water tankL55Filtering mode filter screenControl System Auto-cutMachine weightkg1500Machine dimensionsmm1765×1170×2150Product details image1. Optional two-axis or four-axis hybrid stepper motor2. Four-axis hybrid motor effectively enhance the dynamic response characteristics of large swing machine, to ensure the accuracy of a large taper cutting3. Spray water to follow the molybdenum wire tilt, in the cutting process to ensure smooth chip removal, is conducive to the stability of the large taper processing4. Through the machine tool parts of the aging, heat treatment and effective, sophisticated follow-up processing, assembly, making the machine has a good accuracy and accuracy to maintain the characteristics5. Electric control part of the non-power resistance, no transformer, so the cabinet does not heat, all the energy are used for cutting and greatly delay the aging of components, is conducive to long-term rapid cutting6. Narrow pulse width, high current characteristics of high-frequency power supply, wire conveyor for the smooth characteristics of the machine and the various parts of the fine processing and assembly characteristics to ensure that the cutting of the workpiece surface quality7. The use of non-stop constant current high frequency voltage cutting process, effectively avoiding the voltage and current negative, which greatly reduces the loss of molybdenum wire, constant current source technology to enhance the utilization of power, reduce power consumption8. Innovative peak current limiting method and technology, even in the high current cutting, encountered cutting short circuit, due to the peak current is limited, it will not break the wire, thereby significantly reducing the rate of broken wire9.V-axis optional linear guide, ball screw, improve the quality of taper processingWhy choose usFAQQ: Are you trading company or manufacturer ?A: We are manufacturer.Q. Could your engineers go to our factory to install the machine and train our workers?A:Yes, our engineers could go to your factory and assist you.Q:What is your warranty?A:One year after shipment ,consumables are not included.Q: What is your terms of payment ?A:L/C or T/T before shipment.Contact usCompany: Jiangsu Dongqing CNC Machine Tool Co. Ltd.Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China  Web: topscnc.en.made-in-china.com   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
