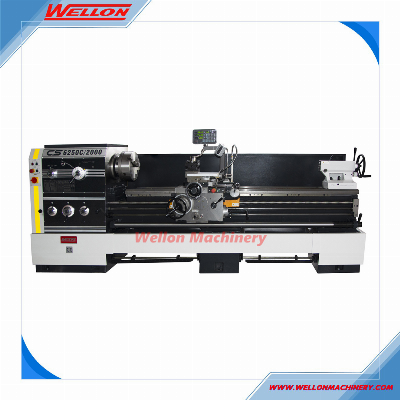

CS6250b/C CS6266b/C Metal Turning Machine Horizontal Lathe machinery Tool

Product DescriptionProducts Description:Detailed Photos Product ParametersCS6250B/C CS6266B/C metal turning machine horizontal lathe machiney toolIntroduction - Can perform internal and external turning, taper turning, end facing, and other rotary parts turning; - Threading Inch, Metric, Module and D. P.; - Perform drilling, boring and groove broaching; - Machine all kinds of flat stocks and those in irregular shapes; - Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; - Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries; - There are hand brake and foot brake for users to choose; - These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz). SPECIFICATIONSUNITCS6250B  CS6266B  CS6250CCS6266CCapacityMax. swing dia. over bedmm500660500660 Max. swing dia.in gapmm710870710870 Max. swing dia. over slidesmm300420300420 Max. workpiece length  mm1000/1500/2000/3000 Bed widthmm400SpindleSpindle bore diametermmΦ82Φ105 Type of spindle nose  noISO 702/II NO.8 com-lock type Spindle speedrpm24 steps 8-140012 steps 36-1600  Spindle motor powerKW7.5TailstockDiameter of quillmm75 Max. travel of quill  mm150 Taper of quill (Morse)  MT5TurretTool O.D. sizemm25X25FeedMax. X travelmm145 Max. Z travelmm320310320310 X feed rangemm/r93 kinds 0.028-6.4365 kinds 0.063-2.52 Z feed rangemm/r93 kinds 0.012-2.7365 kinds 0.027-1.07 Metric threadsmm48 kinds 0.5-22422 kinds 1-14 Inch threadst.p.i48 kinds 72-1/425 kinds 28-2 Module threadsπmm42 kinds 0.5-11218 kinds 0.5-7 Diametricpitch threadst.p.i.π 42 kinds 56-1/4  24 kinds 56-4Others Lengthmm2632/3132/3632/4632 Widthmm975 Heightmm1270145012701450 Weight kg2100/2300/2500/29002200/2400/2600/30002100/2300/2500/29002200/2400/2600/3000  Standard Accessories:3-jaw chuck4-jaw chuckSteady restFollow restFace plateDrive plateDead centersCenter sleeveFull splash guardWork lampCoolant systemLubricating systemOil trayFoot brakeFoundation blocksTool and tool boxOptional Accessories:2 axis DRO 3 axis DRO Chuck guardTool post guardLeadscrew coverLive centersTapper turning attachmentThread chasing dialLogitudinal micro stopSchneider electrical componentQuick change tool postCompany ProfileCompany Information:Packaging & ShippingFAQContact Us:https://wellonmachinery.en.made-in-china.com/contact-info.html/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
