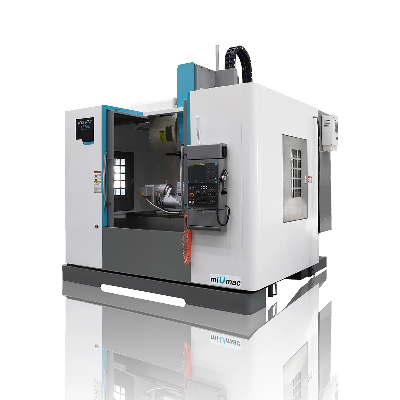

High Speed Accuracy Vmc CNC Milling Machine Vertical Machining Center

Technical SpecificationsMODELSKDVM1160LKDVM1270LKDVM1370LTRAVEL   Table travel (X axis)1100mm1200mm1300mmSaddle travel (Y axis)600mm700mm700mmSpindle travel (Z axis)600mm700mm700mmSpindle center to column 650mm762mm762mmSpindle end to table120-720mm150-850mm150-850mmTABLE   Tablesize600×1200mm700×1400mm700×1500mmT-slot(width×number×space)18×5×100mm18×5×125mm18×5×125mmMax.table loading800kg900kg1000kgSPINDLE   Taper bore of spindleBT40BT40BT40Spindle power11/15kw11/15kw15/18.5kwSpindle speed8000rpm8000rpm8000rpmFEED   X/Y/Z axis fast feed36/ 36/ 30m/min36/ 36/ 30m/min24/ 24/ 20m/minX/Y/Z axis fast feed20/20/20Nm20/20/20Nm27/27/27NmATC   Tool numberBt40/24 toolsBt40/24 toolsBt40/24 toolsACCURACY   Repeatability(X/Y/Z)(ISO)≤0.006/≤0.005/≤0.005mm≤0.006/≤0.005/≤0.005mm≤0.008/≤0.006/≤0.006mmOTHERS   Overall dimension (LxWxH)        (with chip conveyor )4400x2550x2600mm4670x2830x3200mm4670x2830x3200mmNet weight6400kg8500kg9500kg   The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.     STANDARD DEVICES OR ACCESSORIESITEMSREMARK1. CNC systemFANUC 0i MF(5)2. Servo motor of X axisFANUC3. Servo motor of Y axisFANUC4. Servo motor of Z axisFANUC5. Spindle motorFANUC6. Spindle unitTaiwan brand7. Air-oil power cylinderTaiwan brand8. Tool magazine with 24 tool capacity Taiwan brand9. Horizontal type tool magazineTaiwan brand10. Ball screw bearing Japan brand11. Linear guide Taiwan brand12. Ball screw of X,Y,Z axisTaiwan brand13. Pneumatic componentsTaiwan brand14. Main low-voltage electrical componentsGerman brand15. Telescopic cover of X,Y,Z axisTaiwan brand16. Coolant pumpTaiwan brand17. Totally sealed guard China brand18. Tool box including:1) Open ended wrench8-10, 12-14, 17-192) Hex socket wrench3, 4, 5, 6, 8, 10, 123) Flat screw driver5"4) Cross screw driver5"5) Flying ringM246) Pads 7) Operation munal 8) Test record The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
