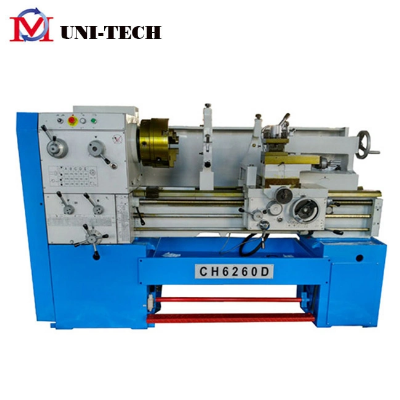

Conventional Heavy Duty Metal Horizontal Universal Turning Lathe Machine

conventional heavy duty Metal Horizontal universal Turning Lathe Machine Features of our horizontal lathe:1. Built in safety clutch. 2. Cross-ribbed headstock for added strength and stability. 3. Anti-friction mounted shafts and dynamically balanced components. 4. Hardened and ground alloy steel gears, shafts and splines. 5. Precision chrome alloy spindle with a big 40mm (1-1/2) thru hole. 6. All cast iron construction. 7. Hardened & precision ground bedways. 8. Quick change gearbox will cut American and metric threads. 9. Foot brake. 10. Dual dialsinch/metric. Standard accessories of our High Precsion Lathe :3-jaw chuck 4-jaw chuck Steady rest Follow rest Foot plate Optional accessories China supplier Metal horizontal Lathe:DRO Quick change toolpost Chuck protection Leading screw guard Toolpost protection Payment terms:1. TT 30% advance payment before production, pay the balance before delivery 2. LC at sight 3. Voltage requirements 220V/380V/400V... Specifications of our High Precsion China supplier Metal horizontal Lathe:ModelCH6 1 240CCH6 1 250CCH6 1 260CMax.swing over bed400mm500mm600mmMax.swing over cross slide325mm325mm325mmMax.swing over gap630mm630mm630mmEffective length of gap260mmCenter Distance1000,1500,2000mmBed Width330mmSpindle hole80mmSpindle noseISO-C8 or D8Spindle taperMetric 85mmSpindle speed(Number)(15steps)24-1600rpmLongitudinal feeds range66kinds 0.072-4.038mm/revCross feeds range66kinds 0.036-2.019mm/revMetric threads range66kinds 0.5-28mmInch threads range66kinds 1-56inchMoudle threads range33kinds 0.5-3.5mπDiametral threads range33kinds 8-56D.PMax.travel of top slide130mmMax.travel of cross slide300mmMax.size of toolshank25*25m 2Dia.of tailstock sleeve65mmTaper of tailstock sleeveMT5Max.travel of tailstock120mmMain drive motor5.5 or 7.5KWRapid traverse motor250WCoolant pump motor125WDetailed pictures:Warranty:What about the spare part if the lathe machine break down?  ==about the machine break down, normally our policy will be as the under way    1) Our quality guarantee time is 12 months since the machine on board     2) During this period, if the machine break down owing our machine itself quality problem,  we will prepare the spare parts and send to you by free within 5 days. all these will be by free.    3) If the break down is caused by the mis operation,  we of course will supply you the spare parts, but we have to charge you the costs prices.  Welcome to contact us!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
