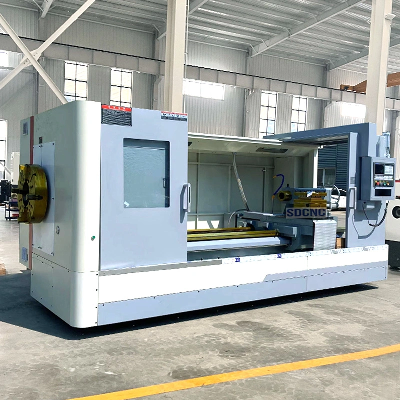

Qk1322 Horizontal Metal CNC Pipe Thread Lathe Machine

Product Description      SDCNCThis series  CNC Pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.   This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.Detailed PhotosPlease note: machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axis  Characteristic1.Big spindle bore and double chuck to ensure process big diameter pipe.2.One-piece bed adopts high strength iron to ensure rigidity and precision.3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance.4.Carriage and guide way contact surface use Turcite B to maintain accuracy. Stander Configuration1. Siemens controller2. NC turret3. Automatic Lubrication4. Coolant Pump5. Semi-shield1. Optional Configuration1. Fanuc or other brand CNC controller2. Quick change tool post3. Hydraulic turret or Power turret4. Pneumatic chuck5. Hydraulic tailstock6. Pneumatic position limiter7. Tool setting arm8. Full-shield1. Product ParametersItemUnitQK1322ManualHYDCapacitySwing over bedmm630/800Swing over cross slidemm340/520Distance between centersmm1000-6000Guideway widthmm50-270Max. load capacitymm550/600Spindle boreT3SpindleSpindle bore tapermm200Spindle nose type-VF.4 stepsHYD 4 stepsSpindle speed rangerpm20-600ChuckmmΦ500 4-jaw manualTurretTurret/tool post-NC turret 4 positionTool shank sizemm32×32FeedX axis travelmm320/420Z axis travelmm1000-6000X axis rapid traversemm/min4000Z axis rapid traversemm/min6000TailstockTailstock quill diametermmΦ100Tailstock quill taper-MT5/MT6Tailstock quill travelmm250MotorMain spindle motorkW11Coolant pump motorkW0.25DimensionWidth×Heightmm1880×1850Lengthmm3300-8300WeightNet weightT4.5/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
