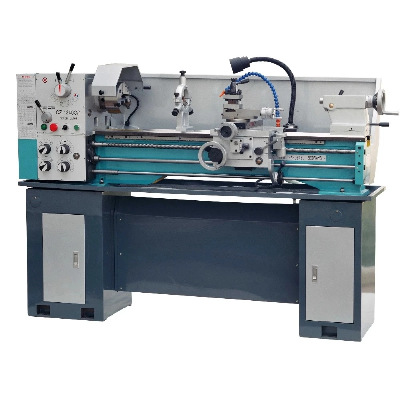

Ecm Approved One Meter Lathe 360*1000mm

1.Features1. Supersonic frequency hardened bed ways2. Precision roller bearing for spindle3. High quality steel, ground and hardened gear inside headstock4. Easy and fast operating gearbox5. Enough strong power motor6. ASA D4 camlock spindle nose7. Various threads cutting functions available8. CZ1340G/1, CZ1440G/1 2.SpecificationBENCH LATHE                           CZ1340G/1        CZ1440G/1Main dataSwing over bedφ 330mm / φ 355mmSwing over carriageφ 195mm / φ 220mmSwing over gapφ 476mm / φ 500mm                                 Width of bed-way186mmDistance between centers1000mmSpindleTaper of spindleM. T. 5 Spindle diameterφ 38mmStep of speed8 StepsRange of speed70-2000 rpmHeadD1-4Thread and feed systemMetric thread  26kinds (0.4~7mm)Inch thread34kinds(4~56T. P. I)Module thread16 kinds(0.35~5M. P)Diametral thread36 kinds(6~104D. P)Longitudinal feeds0.052~1.392mm (0.002" ~0.0548" )   Cross feeds0.014~0.38mm (0.00055" ~0.015" )Main lead screw Diameter lead screw φ 22mm(7/8" )Pitch of lead screw          3mm or 8T. P. ISaddle and carriageSaddle travel1000mmCross travel170mmCompound travel74mmTailstockBarrel travel95mmBarrel diameterφ 32mmTaper of centerM. T. 3PowerMotor power1.5KW (2HP)Motor for coolant system' s power0.04KW (0.055HP)Shipment data Machine(L× W× H)1920× 760× 760 (mm)Stand(left) (L× W× H)440× 410× 700 (mm)Stand (right)(L× W× H)370× 410× 700 (mm)Machine510/565 (kgs)Stand70/75 (kgs)Loading qauntity/20" container22 pcs3.Machine photos4.Our company's manufcturing ability/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
