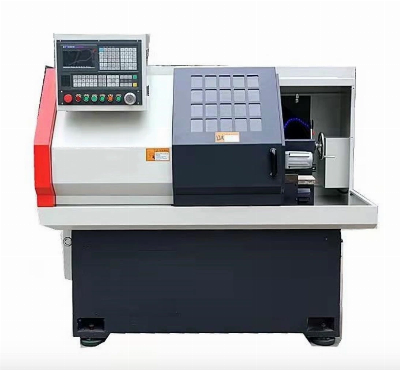

Ck6130 Flat Horizontal Lathe CNC Machine

CNC Turning Lathe MachineProduct Description   It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard.This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.Product ParametersBed width mm240Max. swing over bed mmΦ300Max. swing over cross slidemmΦ100Max. Turning length mm200 (chuck)/ 320 (collect)X/Z axis travelmmX:300   Z:350Spindle nose  A2-5Spindle boremmΦ48 Inner diameter of drawing pipemmΦ40Spindle speedrpm2500Spindle motor power kw4X/Z axis motor torqueN.m4/4X/Z axis fast feeding speed m/min6/8X/Z repeat-abilitymm+/-0.005Tool bar sectionmm20x20Tail stock quill dia.  mmΦ52Tail stock quill travel mm90Tail stock taper #MT4Power capacitykva7N.W.kg950Machine dimension (L*W*H)mm1600x1100x1650 Customer Case    NC CONTROLLERSiemens 808D in Poland language1. 4kw common spindle motor with invertor2.4 station electric turret and two pieces gang type tool posts3.Manual chuck 4.No manual tail stock 5.tri-color alarm lamp6.integrated automatic lubrication system7. Full set of coolant system ready for use8. Advanced LED lighten system9. half enclosed safety metal cover 10. spare parts free of cost with machine. Mechanical electrical user manual, control system operating manual, electrical drawing etc11. Electric Power: 380V±10%/ 50Hz±1%, 3 phase AC. Please confirm your voltage before contract makingWarranty1.12 months.2. Spare parts are free of cost with machine. 3. A number of engineers could provide 24 hours technical support on line. 4. Non-artificial reason damaged parts are offered free of charges in warranty.DeliveryAbout 60 daysPaymentT/T 30% deposit, T/T 70% balance in 7 working days before goods leave our factory.validity period the end of June, 2021Option 6-inch solid hydraulic collect chuck+6000RMB 6-inch hollowed hydraulic collect chuck+7000RMBcustomer visit our company  Hot ProductsCompany ProfilePackaging & ShippingFAQ1:How can I choose the most suitable machines?Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .  2: What's your main products of your company?We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .3: How long is the delivery time?For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.4.Where is our factory located? How can I visit there?Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.5. What is your trade terms?FOB, CFR and CIF all acceptable.6: What's the Payment Terms?T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .7: What's the MOQ?1 set .(Only some low cost machines will be more than 1 set )./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
