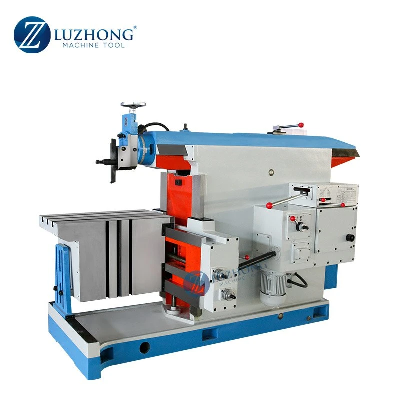

Planner BC6085 Horizontal Mechanical Metal Shaping Shaper Machine Price

Planner BC6085 Horizontal Mechanical Metal Shaping Shaper Machine Product DescriptionProduct main features:1. Shaper workbench can about rotational angle worktable moving structure with lateral and lifting; to planing inclined plane, thereby expanding the scope of use.2 feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.5 Shaper with parking  brake mechanism, so the speed of transformation. When starting machine  tools and parking, the power supply can not be cut off.Product ParametersSpecificationsUnitsBC6085Maximum shaping lengthmm850Maximum distance from ram bottom to table surfacemm400Maximum moving distance of the working table(horizontal)mm710Maximum moving distance of the working table (vertical)mm360Table size (L*W)mm800×450Maximum travel of tool headmm160Tool carrier rotary angle°±60°Number of ram reciprocating per minute 17,24,35,50,70,100Feeding range of level travel(12steps)mm0.25~3 12 stepsFeeding range of vertical travel(12steps)mm0.12~1.5 12 stepsRapid feed speed of table levelmm1.2Rapid feed speed of table verticalmm0.58T-slots widthmm22Main motor powerKW5.5Overall dimension(L*W*H)mm2950×1325×1693N/G.Wkg2940/3090Detailed Photos Company ProfileFAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
