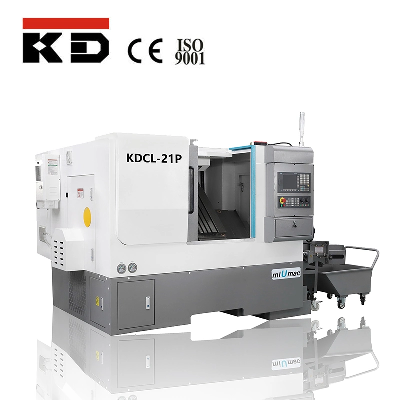

CNC Machine Tool Precision Lathe Slant Bed Lathe for Sell

ISO 9001 Approved Metal-Forming Tools CNC Lathe MachineFEATURES AT A GLANCE PRODUCT SPECIFICATIONS MODELSKDCL-21PCAPACITY   Max. swing over bed Ф420mm Max. cutting diameter for disc parts Ф120mm Max. length of workpiece 280mm TRAVEL   X travel 450mm Z travel 350mm Guide ways X&Z Precision linear ball rail FEED   Rapid feed for axis X 28m/min Rapid feed for axis Z 28m/min SPINDLE   Max. speed of spindle 60-4000rpm Spindle nose A2-5 Diameter of spindle thru hole Ф56mm Hydraulic chuck 6″ Type of spindle motor Servo motor TOOL POST   Tool number Gang Tool Gang tool table/distance between T-slot 200x650mm/50mm Standard tool size 20x20mm OTHERS   Main motor 5.5kW Min. input 0.001mm Bed structure 45° slant bed Overall dimensions(L×W×H) 2320×1650×1750mm Net weight 2500kg PRODUCT CONFIGURATION /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
