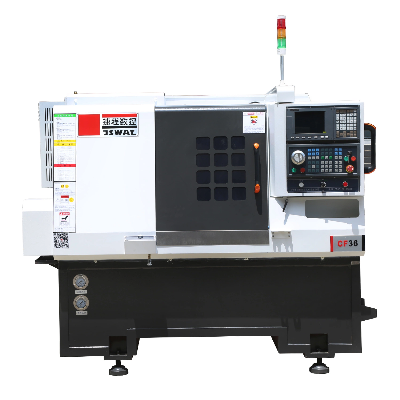

Model No.:CF36Model Name:CNC Gang Tool Lathe Machine (CNC Two Axes Lathe) Accessories per machine:1,tool base 8PCS 2,technical data sheet 1set 3,tool 1set 4,pull rod 1PC 5,flange 1PC Features:Machine adopts with mechanical, electricity, pneumatic trinity, according to ergonomic amenity layout design, fully enclosed protection, compact structure, saving area, easy operation, easy maintenance.2. The X/Z-axis installation process is very advanced, the processing speed is fast, the processing size is very accurate, and the hot and cold machine ruler hardly changes. The processing speed can reach up to 36 m/min, factory value is set to 30 m/min.3. Taiwan POSA/ROYAL vertical precision spindle, under precision dynamic balanced, and the bearings are lubricated with permanent imported grease, keep the spindle rotating smoothly at high speed and reduce thermal deformation to a minimum. High cutting speed up to 6000r/min, can be high-gloss processing.4. Machine are connected with the servo motor and the lead screw directly for both vertical and horizontal directions, Japan NSK lead rob bearings to ensure the transmission high precision.5. With high-performance automatic intermittent lubrication system, which can lubricate the bed guide rail and X/Z lead rob in a timely manner to ensure the guide rail surface and vertical and horizontal lead rob are always in a good lubrication state.6. With horizontal type tool holder , which the arrangement and adjustment are more convenient. Automatic pull-out material device can be installed on the tool holder and controlled by numerical control system easily realize the automation of on-line collaboration. To improve the production efficiency.Configuration:ItemManufacturer /supplierSpecificationRemarksSystemSYNTEC22TA SpindleTaiwan POSAA2-4/36 X-axis servo motorJapan YASKAWA850WRated torque 5.39 NmMax. Torque 14.2 NmZ-axis servo motorJapan YASKAWA850WRated torque 5.39 NmMax. Torque14.2 NmSpindle motorChina THINK / F.C3700W asynchronous servo motorRated torque24.7 NmDriverChina MEGMEET5500W Rod guide railTaiwan HIWIN/PMIC3,P grade BearingJapan NSK/German FA gP4grade ,Parameter:NCSYNTEC22TAProcessing capacitySpindle through hole dimensions¢46mmMax. bar diameter¢35 mmMax. machining diameter¢280 mmMax. machining length180 mmX-axis max. travel630 mmZ-axis max. travel265 mmX/Z-axis moving speed36m/min(factory setting value 30 m/min)Re-positioning accuracy0.005mmMotor Spindle servo motor3700wSpindle max. turning speed6000r/minX-axis servo motor850WZ-axis servo motor850WToolTool quantity8Power toolN/AMachineTotal power7000WDimensionAround 1930X1335X1580WeightAround 2200KGPACKING DEMENSION: 2200*1650*2100 NET WEIGHT: 2500KGS /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
