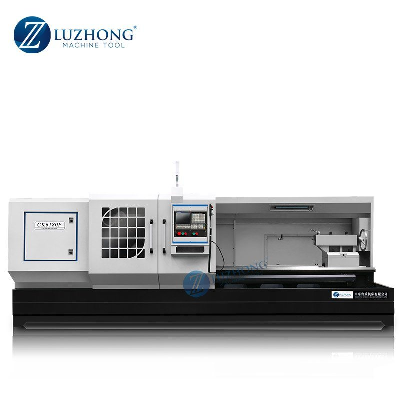

CK6180F Horizontal metal heavy duty  automatic CNC turning Lathe Machine

CK6180F Horizontal metal heavy duty  automatic CNC turning Lathe MachineProduct DescriptionProduct main features and uses:This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.Product ParametersProduct main technical specification: ItemSpecificationsUnit CK6180FCK61100FCK61125FTechnical specificationMax.swing over bedmm80010001250Max.swing over cross slide mm460660880Max.turning lengthmm                    1500-12000Bed widthmm                       660Max.work piece weightT                        3Main driveForm Three steps variable speedRange of spindle speedsR/min15-500Terminal structure C11(D11)Hole diameter of Spindlemm130Spindle hole fore-end taper Metric 140   1:20Model of main motor  YVP180L-6-15KWFeeding systemMaximum cross travel of turret X:530  Z:1650,3100,6100Ball-screw diameter *pitchmmX:3205          Z6310Speed of quick travelmm/minX:4000          Z:5000Setting accuracymmX:0.025         Z:0.03Resetting accuracymmX:0.01           Z:0.015Precision pf workpiece IT6-IT7Surface roughnessmmRa1.6Sleeve diameter of tailstockmm100TailstockSleeve travel of tailstock mm250Cone hole taper  tailstock's sleeveMorseMorse 6 TurretStandard configuration Four-station Vertical electrical turretAlternative configuration Horizontal Six-station electrical turretResetting accuracymm0.01Tool section sizemm32x32Control systemStandard configuration NHC-210A     GSK980TD Alternative configuration KND.  FANUC.  SIEMENSServo motor X:130SJT-M150B   Z:175SJT-M220BMachine appearanceLength x Width x Widthmm4750(5500)x1920x1800Size /weightNet weightkg6000(1500)8500(3000)13500(6000)Detailed PhotosCompany Information  FAQ1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
