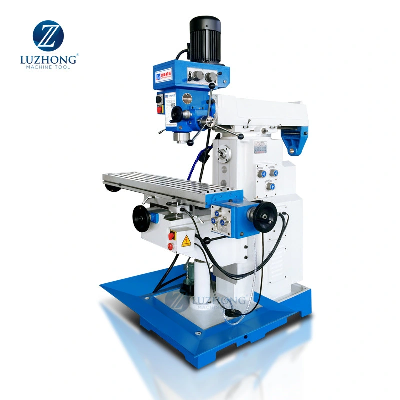

ZX6350C China vertical horizontal milling drilling machine with CE Product DescriptionThe main performance characteristics: 1.Gear transmission for vertical/hozizontal milling head2.ZX6350C :X axis auto feed,Y/Z axis manual feed ZX6350D :X/Y axis auto feed,Z axis manual feed 3.Headstock swivel +/-45°4.Guide way with sparking quenchingProduct ParametersProduct main technical parameters:SpecificationsUnitsZX6350CTable sizemm1120x280 T Slot number/width/pitch mm 5/14/50 Longitudinal travel mm 630 Cross travel mm 280 Vertical travel mm 430 Vertical milling capacity mm 32 Face milling capacity mm 100 Drilling capacity mm 50 Longitudinal feeds range Mm/min 24-720 Cross feeds range Mm/min - Vertical milling spindle travel mm 120 Spindle nose to table surface mm 140-570 Travel of movable arm mm 360 Vertical milling spindle taper MT4 Horizontal milling spindle taper MT4 Vertical milling spindle speeds R/min 115-1750 ,8 steps Horizontal milling spindle speeds R/min 32-1320 ,12 steps Vertical milling motor kw 1.5/0.85 Main motor kw 2.0/2.4 Overall dimensions mm 1400x1300x2100 Net weight Kg 1300 Detailed Photos Company InformationFAQ /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
