Economical Vertical Lathe Machine

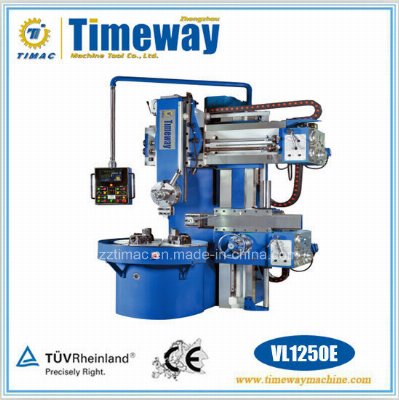

Single Column Vertical Lathe VL1250E    VL1600E    VL2000E    VL2300E Performance and Feature 1. This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.  2. The foundation part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.  3. Main transmission is driven by AC motor, main drive speed changing with 16steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.  4. Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision. 5.Vertical tool-post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning, side tool-post is equipped with four-station tool-post. Both tool-posts adopt hydraulic balance. Horizontal and Vertical feed of vertical tool-post use the sliding screw driving; vertical and horizontal feed of side tool-post adopt gear-rack driving. Both tool-post are driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high strength PTFE soft belt. 6. Hydraulic system is equipped with German traffic transmission device, to guarantee oil flow stability for the workbench lubricating. 7. The machine uses PLC control, high reliability, electrical wiring in accordance with the process execution.  8. Beautiful appearance, agreeableness, convenient operation and maintenance. 9. According to customer's special requirement, we can provide digital display device, T-type ram and square ram.  Technical ParameterSpecificationUnitVL1250EVL1600EVL2000EVL2300EMax. turning diametermm1250160020002300Max. height of workpiece(H)mm1000/1250/14001000/1250/1400/16001250/16001250/1600Max. weight of workpiecet581212Worktable diameter mm1010140018002000Max. cutting force of vertical tool-postKN20252525Max. cutting force of side tool-postKN20202020Max. torque of worktable KN.m17.5253232Worktable speed range(16steps)rpm6.3-2005-1604-1253.2-100Feed speed range of vertical tool-post(12steps)mm/min0.8-860.8-860.8-860.8-86Tool-post rapid feed speedmm/min1800180018001800Swiveling angle of vertical tool-post°±30°±30°±30°±30°Horizontal travel of vertical tool-postmm-28-733-15-930-65-1150-86-1300Vertical travel of vertical tool postmm650/800800/1000800/1000800/1000Horizontal travel of side tool-postmm630630630630Vertical travel of side tool-postmm900900900900Main motor powerkw22303737Worktable guideway type  rollingrollingrolling/dynamic-pressurerolling/dynamic-pressureVertical tool-post guideway type  slidingslidingslidingslindingMachine dimension(L*W*H)mm2360*2300*35802830*2870*38703210*2970*42003700*3390*4240Machine weight t8.3/8.6/8.912.6/13.8/14.117.5/17.818.8/19.5Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we
