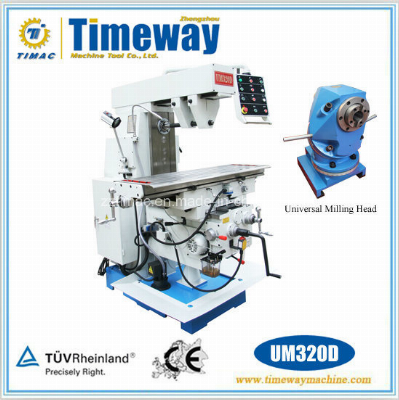

Horizontal Universal Milling Machine (Normal Miller)

Horizontal Universal Milling Machine (Normal Miller)UM320D Features:Rigid, heavy machine frame featuring proven knee and column design. All three axis with automatic and rapid feeds by a gear box. Equipped with two hangers, ensure to cutting stability. Worktable swivels ±45°, can achieve inclined cutting. Standard equippment includes chip tray, coolant system and central lubrication system(manual or power). Rectangular guideway on the Y/Z axes, high stability; dovetail guideway on the X axes; all guideways and gears are hardened and ground. Centralized operation panel makes operation easier and digital readout is optional. Technical ParameterSpecificationUM320DSpindle taper ISO40(V); ISO40(H)Distance from vertical spindle nose to table0-390mmDistance from horizontal spindle centerline to table0-280mmDistance from vertical spindle centerline to column465mmDistance from horizontal spindle centerline to ram bottom160mmSpindle speed range12 steps, 40-1300r.p.m Swivel angle of milling head±360°Table size (L×W)1250×320mm (1500×320mm)Table travel (X/Y/Z)600(800)/300/350mm (1100/300/350mm)Table longitudinal & cross feed (X/Y)8 steps, 22-555mm/minTable vertical feed (Z)8 steps, 17-190mm/minX,Y-axis rapid feed speed1080mm/minZ-axis rapid feed speed590mm/minFeed motor power750WMax.loading of worktable300kgTable T-slots (No./Width/Pitch)3/14/70mmZ-axis guide way typeRectangularY-axis guide way typeRectangularX-axis guide way typeDovetailMain motor power2.2kwOverall dimensions (L×W×H)1700×1500×2150mmPacking size (one/two sets) 1680×1600×2250mm/2300×1600×2250mmN.W/G.W (one set)1650/1800kg  Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.  Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
