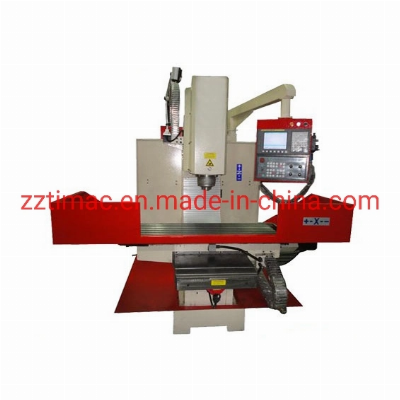

Fanuc Bed Type CNC Milling Machine

FANUC Bed Type CNC Milling Machine KBM-1654 Features:1. The spindle system features strong rigidity, it is suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.2. The milling machine can be used for drilling, boring, lathing and milling.3. The milling machine adopts rectangular guide ways, features strong rigidity and high accuracy.4. Radial tool holder of facing head on the headstock head for radial machining.5. Optional digital readout device, reading accuracy 0.01mm, positioning accuracy 0.05mm. Standard accessories: Semi-isolated table shield, Cutting fluid circulation system, Auto. Lubrication system, Spindle air flow,Working light, Level adjusting screw and block, Clamping apparatus. Optional accessories:The forth axis revolving table, Vertical arm type ATC, Full closed safety cover, Cutter length measuring unit, Edge finder, Shank Technical Parameters SpecificationKBM-1354BKBM-1654KBM-2063KBM-2473Table size(L×W/mm)1370×3301370x4061600x5101854x610Table loading capacity(kg)40080012001500T-slots(W/mm×NO)16×316x518x518x5X-axis(mm)800100012001500Y-axis(mm)450480700700Z-axis(mm)480600600700Max.move speed(mm/min)800080001000010000Max.feed speed(mm/min)3000300040004000Spindle speed(rpm/min)range:40~6000 Spindle noseBT40BT40BT40/BT50BT40/BT50Spindle motor(kw)5.57.57.57.5Servo motor(kw)X/Y:1.0,Z:1.5X/Y/Z:1.5X/Y/Z:2.0X/Y/Z:2.0Spindle quill diameter(mm)120150150/160150/160Spindle to column surface(mm)450520640695X-axis(mm)32×5p4Double nuts32×5p4Double nuts40×10p4Double nutsY-axis(mm)32×5p4Double nuts40×5p4Double nuts40×10p4Double nutsZ-axis(mm)32×5p4Double nuts40×5p4Double nuts40×10p4Double nutsPositioning accuracy(mm)±0.015±0.015±0.015±0.015Repeatability(mm)±0.008±0.008±0.008±0.008Packing dimension(L×W×H)(mm)2250×2280×24502500x2280x26502900x2950x28002900x3150x2900Machine weight(kg)2600380050006000     Our Advantages1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.2. Quick action and reply for the technical questions at any time in the whole life of the machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer(relative cost born by customer).Packaging & ShippingCompany ProfileTimeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.  Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.Customer visitedSo far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view  Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine  FAQQ: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
