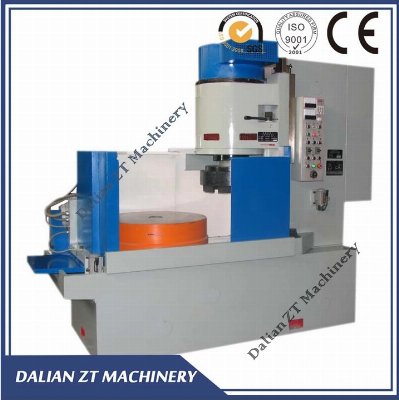

M7450 Vertical Spindle Surface Grinding Machine with Rotary Table

Features:M74 Vertical surface grinding machine with rotary tableThe grinding range is from dia. 500mm to 2500mm. This series of grinding machine is mainly used for the industry needing grinding process, such as circular saw blade,automobile parts and components, tool and guage, bearing, mold and mold holder, magnetic material, hydraulic parts etc.  ItemM7450ETable diameterΦ500mmTable speed5-20rpmMax. Swing dia. of workpieceΦ580mmTable movement Total machine power27kWMax. Loading of table200kgGrinding wheel size(ODxIDxH)350x280x125mmSpindle speed of grinding head980rpmGrinding head motor22kWMax. Grinding size(DxH)Φ500x300mmRoughness of machining surfaceRa0.8umFAQ 1. MOQ   1 set 2. DELIVERY TIME       It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.  3.  PAYMENT TERM    T/T 30% down payment when order, 70% balance payment before shipment.4. WARRANTY PERIOD 13 months from the date of B/L, during the warranty period, daily damage parts will be supplied  freely,  the after sale service will be done by dealers . After warranty period, the spare parts will be   supplied at factory price.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
