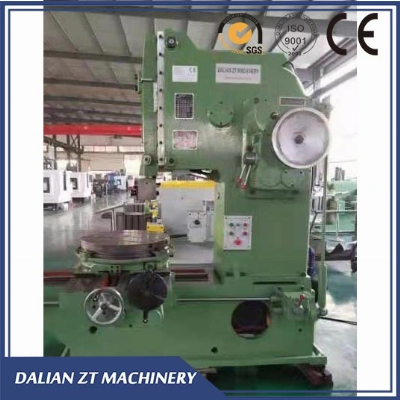

Strong  Keyway Metal Slotter  Vertical Slotting Machine B5032 B520

SLOTTING MACHINE is used to machine planes, model surfaces, key ways slot etc.. And it is suitable for the single piece or small batch production. By means of the main transmission mechanism, the rotary movement of the crank gear is converted into the reciprocating movement of the ram.  The worktable is designed for longitudinal, cross and rotary feeding both automatically and manually, which can stop automatically in case of trouble. The slotting machine model B5032 has production history for more than 50 years.   ItemUnitB5032Max. slotting length mm320Max. workpiece size (L*W): mm600x320 Max. weight of workpiecekg500 Max. cutting forceN7500 No. of ram strokes per minuterpm20,32,50,80Vertical adjustment of rammm315 Inclination of ram  0-8°Distance between tool holding surface and column front mm600 Max. tool shank (W*H) mm25*40 Table diametermm630 Distance between table surface and low end of ram mm490 Max. longitudinal travel of table (auto/manual)mm480/620 Max. cross travel of table (auto/manual)mm480/560 Table feed range (in auto mode)mm0.08-1.21Table index feed  0.052-0.783°Main motor power kW4 Machine size (L*W*H) (approx.)mm2530*1800*2520;Weight of machine (approx.) kg3500    WORKSHOP    FAQ 1. How can I choose the most suitable machines ?A:  You can choose the exact model by yourself.  Or you can tell us your specifications, to let us choose the best model for you, too. You can also send us the product drawing, and we will choose the most suitable machines for you.  . 2. When do you deliver?A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.  3. Is machine tested ?A: The accuracy, noisy will be tested according to China GB standard. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5. What's the Payment Terms ?A : T/T 30% down payment when order ,70% balance payment before shipment ;Irrevocable L/C at sight also acceptable but it will subject additional bank fee. 6. Do you accept cash or L/C?A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account. 7. What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set) 8. How is the warranty?A: 12 months after shipment date9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.A: Video technical support, online service, we can answer you in 24 hours.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
